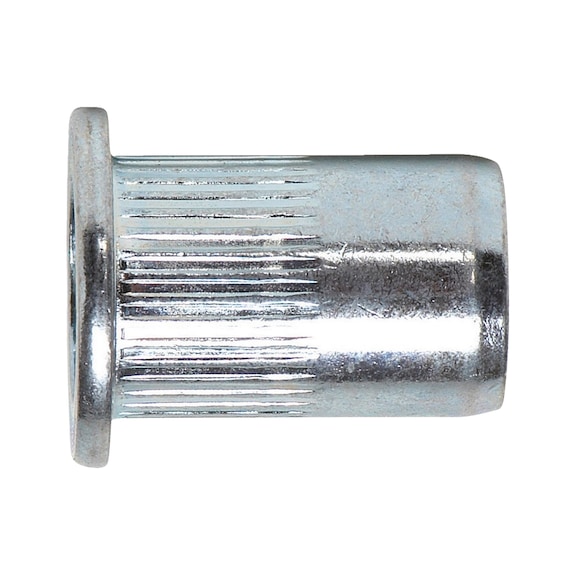

Rivet Nut M6 Aluminium | Flat Head & Knurled Shank | 10 Pack | by Wurth
Rivet nut M6 Aluminium with a flat head and knurled shank is perfect for fastening in thin-walled materials. Designed for automotive, construction, and industrial assembly, it combines a blind rivet connection with an additional screw connection for enhanced security. With a tensile fracture load of 9300 N, this durable and lightweight rivet nut ensures reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut M6 Aluminium | Flat Head & Knurled Shank | 10 Pack | by Wurth
Brand: Wurth
SKU: 9482206
Alternatively Known As: Rivet Nut M6 Aluminium, Blind Rivet Nut, Knurled Shank Rivet Nut, Dome Head Rivet Nut
Technical Specifications
- Material: Aluminium
- Surface: Plain
- RoHS-compliant: Yes
- Thread type x nominal diameter (D): M6
- Length (l1): 18.5 mm
- Head diameter (d1): 12 mm
- Outer diameter (d2): 8.9 mm
- Head height (k1): 1.6 mm
- Min./max. grip range (s1): 3.0-5.5 mm
- Tensile fracture load: 9300 N
- Shear-fracture load: 2280 N
- Max. tightening torque: 11.3 Nm
- Drill hole diameter: 9.0 mm
- Shank detail: With knurled shank
- Head type: Dome head
- Dimensions (H x L x W): 18.5mm x 18.5mm x 12mm
- Weight: 0.01 kg
Key Features
- Made from aluminium for lightweight and corrosion resistance
- Combines blind rivet connection with additional screw connection
- Knurled shank for secure fastening and resistance to rotation
- Enables screw connections in thin-walled materials
Professional Installation Requirements
- Installation requires proper drilling and setting tools; professional installation recommended for optimal fastening performance and safety.
Applications
- Used for fastening in thin-walled structural elements
- Suitable for blind rivet and screw connections in metal fabrication
- Ideal for automotive, construction, and industrial assembly
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from recyclable aluminium material
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Rivet Nut with Flat Head and Knurled Shank M6 Aluminium is available for immediate purchase, ideal for industrial and construction fastening applications.
