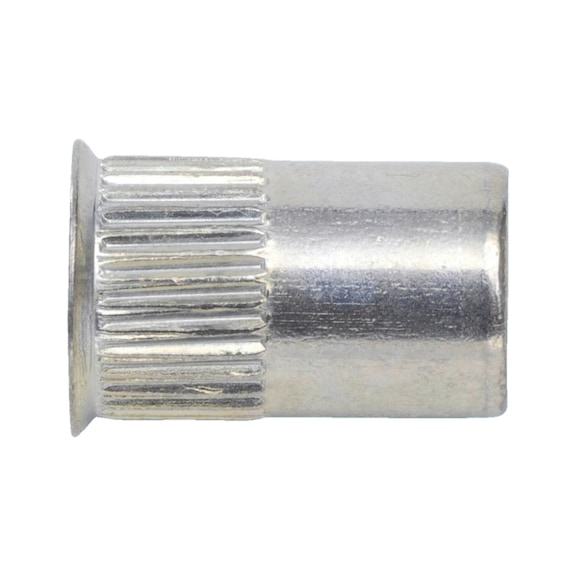

Rivet Nut M6 with Small Countersunk Head | Zinc Plated Steel | Knurled Shank | @Pack of 25 | by Wurth
Rivet nut M6 with a small countersunk head and knurled shank is perfect for creating secure threaded connections in closed profiles. Made from zinc-plated steel, this nut ensures durability and compliance with RoHS standards. Ideal for industrial and construction applications, it allows for easy installation from one side without the need for countersinking drill holes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut M6 with Small Countersunk Head | Zinc Plated Steel | Knurled Shank | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 917760
Alternatively Known As: Rivet Nut, Blind Nut, Threaded Insert, Rivnut, Nutsert
Technical Specifications
- Material: Steel
- Surface: Zinc plated
- RoHS-compliant: Yes
- Thread type x nominal diameter (D): M6
- Length (l1): 13 mm
- Head diameter (d1): 9.0 mm
- Outer diameter (d2): 7.9 mm
- Head height (k1): 0.50 mm
- Min./max. grip range (s1): 0.5-3.0 mm
- Tensile fracture load: 10000 N
- Shear-fracture load: 4400 N
- Max. tightening torque: 10 Nm
- Drill hole diameter: 8 mm
- Shank detail: With knurled shank
- Head type: Small countersunk head
- Dimensions (H x L x W): 0.5mm x 13mm x 9mm
- Weight: 0.02 kg
Key Features
- Zinc-plated steel with blue passivation
- Small countersunk head design
- Knurled shank for anti-rotation connection
- Installation from one side, suitable for closed profiles
- No countersinking of drill holes necessary
- Consistently high installation quality
- Load-bearing threaded connection
- Simple, fast, and mostly automatic installation
- Improved efficiency with secure connections
Professional Installation Requirements
- Installation should be performed by trained personnel using appropriate tools to ensure secure and reliable fastening.
Applications
- Suitable for use in closed profiles
- Ideal for riveted and screwed connections
- Mounting additional components using conventional screws
- Installation from one side for ease and efficiency
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable steel construction extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Rivet Nut with small countersunk head and knurled shank is available for immediate purchase. Ideal for industrial and construction applications requiring secure threaded connections.
