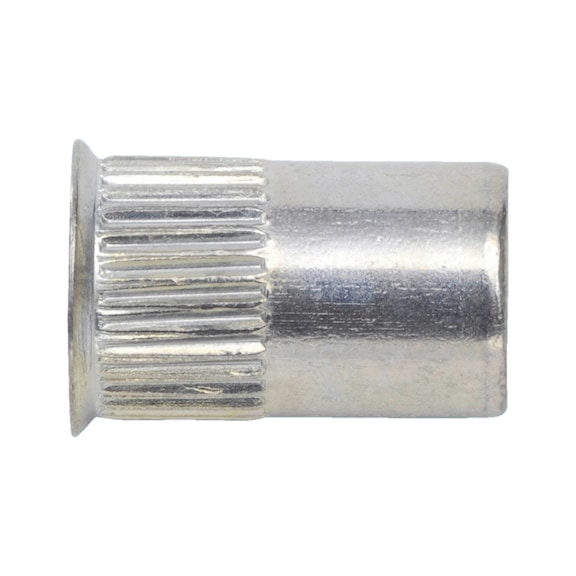

Rivet Nut M8 | Small Countersunk Head | Knurled Shank | Zinc Plated | @Pack of 25 | by Wurth
Rivet nut M8 with a small countersunk head and knurled shank is perfect for secure threaded connections in metal fabrication. Made from zinc-plated steel, it offers excellent corrosion resistance and is designed for easy installation from one side, making it ideal for automotive and construction applications. Enjoy improved efficiency and consistent quality with this reliable fastening solution.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut M8 | Small Countersunk Head | Knurled Shank | Zinc Plated | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 917780
Alternatively Known As: Rivet Nut M8, Countersunk Rivet Nut, Knurled Shank Rivet Nut, Blind Rivet Nut, Threaded Insert Nut

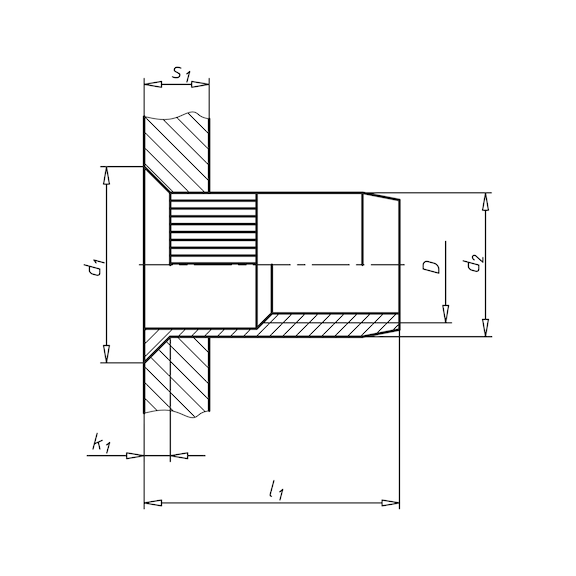

Technical Specifications
- Material: Steel
- Surface: Zinc plated with blue passivation
- RoHS-compliant: Yes
- Thread type x nominal diameter: M8
- Length: 16 mm
- Head diameter: 11.0 mm
- Outer diameter: 9.9 mm
- Head height: 0.50 mm
- Grip range: 0.5-3.0 mm
- Tensile fracture load: 22000 N
- Shear-fracture load: 5200 N
- Max. tightening torque: 25 Nm
- Drill hole diameter: 10.0 mm
- Shank detail: Knurled shank
- Head type: Small countersunk head
- Dimensions (H x L x W): 16mm x 16mm x 11mm
- Weight: 0.02 kg
Key Features
- Zinc-plated steel with blue passivation for corrosion resistance
- Small countersunk head design
- Knurled shank for anti-rotation and secure load-bearing thread
- Installation from one side, suitable for closed profiles
- No countersinking of drill holes necessary
- Simple, fast, and mostly automatic installation
- Consistently high installation quality
- Improved efficiency with faster operation and secure connections
Professional Installation Requirements
- Installation should be performed by trained personnel using appropriate rivet nut installation tools to ensure secure and consistent fastening.
Applications
- Suitable for riveted and screwed connections in metal fabrication
- Installation in closed profiles from one side
- Mounting additional components using conventional screws
- Ideal for automotive, construction, and industrial assembly
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life and reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Rivet Nut with small countersunk head and knurled shank M8 is available for immediate purchase. Ideal for industrial and construction applications requiring secure threaded connections.
