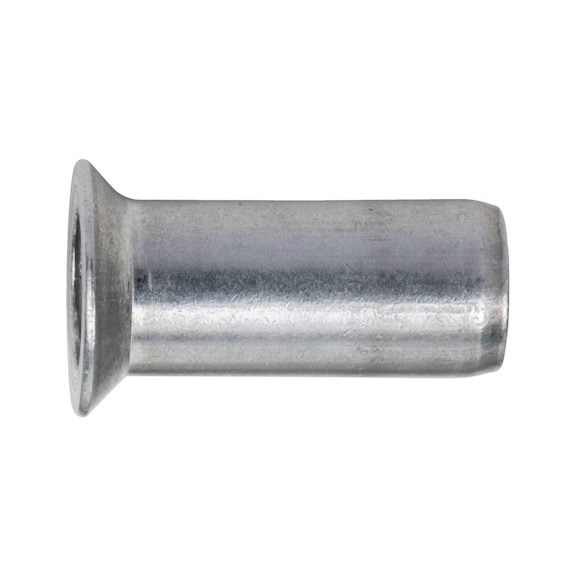

Rivet Nut Multi-Purpose with Countersunk Head | Aluminium Material | 10 PCS | by Wurth
Rivet nut multi-purpose with countersunk head is perfect for secure fastening in thin-walled and stronger components. Made from durable aluminium, these innovative rivet nuts offer a large clamping length range and are chrome(VI)-free, ensuring compliance with environmental standards. Ideal for industrial and construction applications, they can be installed from one side using conventional lever riveters.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut Multi-Purpose with Countersunk Head | Aluminium Material | 10 PCS | by Wurth
Brand: Wurth
SKU: 94855040
Alternatively Known As: Rivet Nut, Countersunk Rivet Nut, Aluminium Rivet Nut, Threaded Insert Nut
Technical Specifications
- Material: Aluminium
- Surface: Plain
- Thread type x nominal diameter (D): M4
- Head diameter (d1): 8.3 mm
- Outer diameter (d2): 6.0 mm
- Length (l1): 13 mm
- Head height (k1): 1.5 mm
- Min./max. grip range (s1): 1.5-6.0 mm
- RoHS-compliant: Yes
- Tensile fracture load: 3000 N
- Max. tightening torque: 3 Nm
- Head type: Countersunk head
- Dimensions (H x L x W): 13mm x 13mm x 8.3mm
- Weight: 0.05 kg
Key Features
- Innovative and patented rivet nuts with large clamping length range
- Aluminium material
- Chrome(VI)-free
- Complies with the EU Directive on end-of-life vehicles
- Reduced storage costs due to small variety of types
- No mixing of different clamping ranges
- Clean, secure closing
- Installation from one side
Professional Installation Requirements
- Installation requires conventional lever riveters and should be performed by trained personnel to ensure secure and clean closing.
Applications
- Suitable for use as rivet and screw connection in thin-walled and stronger components
- Installation from one side, suitable for closed profiles
- Application with conventional lever riveters
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Chrome(VI)-free material reduces environmental and health hazards
- Complies with EU Directive on end-of-life vehicles promoting recyclability
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
Wurth Rivet Nut Multi-Purpose with Countersunk Head 10 PCS is available for immediate purchase, ideal for industrial and construction fastening applications.
