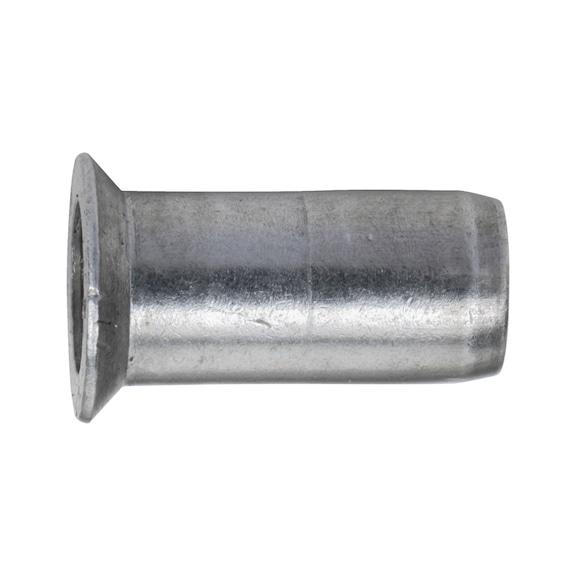

Rivet Nut Multi-Purpose with Countersunk Head | Aluminium Material | 4200 N Tensile Load | @Pack of 10 | by Wurth
Rivet nut multi-purpose with countersunk head is designed for reliable fastening in thin-walled and stronger components. Made from aluminium, these rivet nuts offer a tensile fracture load of 4200 N and are RoHS-compliant, making them ideal for industrial and construction applications. Perfect for installations using conventional lever riveters, they ensure secure and clean closures.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut Multi-Purpose with Countersunk Head | Aluminium Material | 4200 N Tensile Load | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 94855050
Alternatively Known As: Rivet Nut, Countersunk Rivet Nut, Aluminium Rivet Nut, Threaded Insert Nut, Blind Rivet Nut
Technical Specifications
- Material: Aluminium
- Surface: Plain
- Thread type x nominal diameter (D): M5
- Head diameter (d1): 9.3 mm
- Outer diameter (d2): 7.0 mm
- Length (l1): 15.5 mm
- Head height (k1): 1.5 mm
- Min./max. grip range (s1): 1.5-6.0 mm
- Tensile fracture load: 4200 N
- Max. tightening torque: 4 Nm
- Head type: Countersunk head
- RoHS-compliant: Yes
- Dimensions (H x L x W): 15.5mm x 9.3mm x 9.3mm
- Weight: 0.02 kg
Key Features
- Innovative and patented rivet nuts with large clamping length range
- Aluminium material with plain surface
- Chrome(VI)-free and RoHS-compliant
- Clean, secure closing
- Reduced storage costs due to small variety of types
- No mixing of different clamping ranges
- Complies with the EU Directive on end-of-life vehicles
Professional Installation Requirements
- Installation should be performed using conventional lever riveters by trained personnel to ensure secure and clean closing.
Applications
- Suitable for use as rivet and screw connection in thin-walled and stronger components
- Installation from one side, suitable for closed profiles
- Application with conventional lever riveters
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Chrome(VI)-free material reduces environmental and health hazards
- Complies with EU Directive on end-of-life vehicles promoting recyclability
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth for specific warranty details.
Available Now
Wurth Rivet Nut Multi-Purpose with Countersunk Head 10 PCS is available for immediate purchase, ideal for industrial and construction applications requiring reliable fastening solutions.
