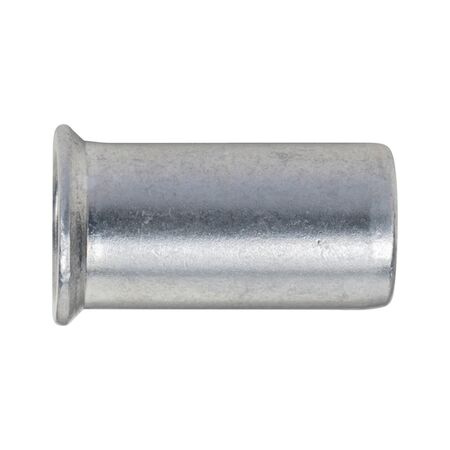

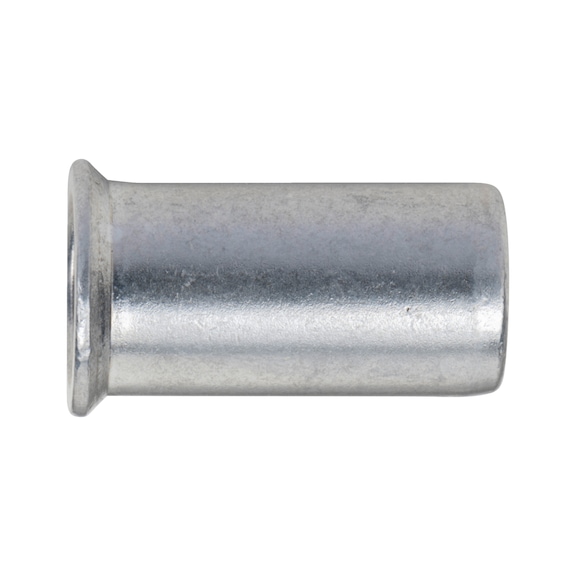

Rivet Nut Multi-Purpose with Countersunk Head | Aluminium Material | 6500 N Tensile Load | @Pack of 10 | by Wurth
Rivet nut multi-purpose with countersunk head is designed for secure fastening in thin-walled and stronger components. Made from durable aluminium, these nuts offer a tensile fracture load of 6500 N and are RoHS-compliant, making them ideal for industrial and construction applications. Perfect for use with conventional lever riveters, they ensure clean and secure connections without mixing clamping ranges.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut Multi-Purpose with Countersunk Head | Aluminium Material | 6500 N Tensile Load | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 94855060
Alternatively Known As: Rivet Nut, Countersunk Rivet Nut, Threaded Insert Nut, Blind Rivet Nut, Nutsert
Technical Specifications
- Material: Aluminium
- Surface: Plain
- Thread type x nominal diameter (D): M6
- Head diameter (d1): 11.3 mm
- Outer diameter (d2): 9.0 mm
- Length (l1): 17.5 mm
- Head height (k1): 1.5 mm
- Min./max. grip range (s1): 1.5-6.0 mm
- RoHS-compliant: Yes
- Tensile fracture load: 6500 N
- Max. tightening torque: 6 Nm
- Head type: Countersunk head
- Dimensions (H x L x W): 17.5mm x 11.3mm x 11.3mm
- Weight: 0.02 kg
Key Features
- Innovative and patented rivet nuts with large clamping length range
- Aluminium material with plain surface
- Chrome(VI)-free and RoHS-compliant
- Clean, secure closing
- Reduced storage costs due to small variety of types
- No mixing of different clamping ranges
Professional Installation Requirements
- Installation requires use of conventional lever riveters and should be performed by trained personnel to ensure secure and clean closing.
Applications
- Suitable for use as rivet and screw connection in thin-walled and stronger components
- Installation from one side, suitable for closed profiles
- Application with conventional lever riveters
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Chrome(VI)-free material reduces environmental and health hazards
- Complies with EU Directive on end-of-life vehicles promoting recyclability
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth for specific warranty details.
Available Now
Wurth Rivet Nut Multi-Purpose with Countersunk Head 10 PCS is available for immediate purchase, ideal for industrial and construction fastening applications.
