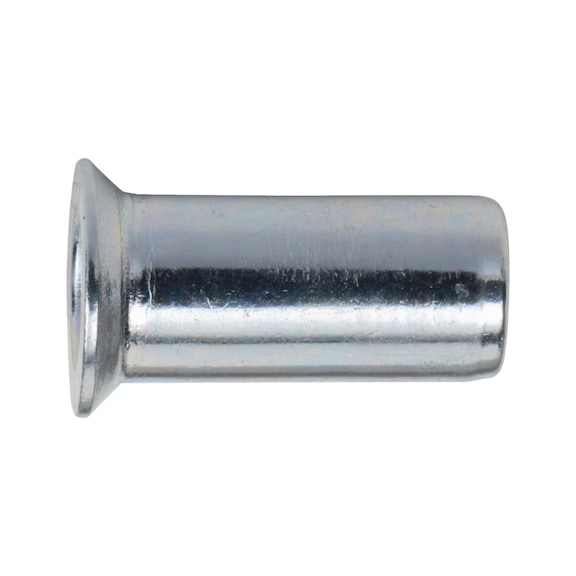

Rivet Nut Multi-Purpose with Countersunk Head | Zinc-Plated Steel | 10 PCS | by Wurth
Rivet nut multi-purpose with countersunk head is designed for reliable fastening in industrial and construction applications. Made from zinc-plated steel, these innovative rivet nuts offer a large clamping length range and are RoHS-compliant, ensuring safety and environmental responsibility. Ideal for thin-walled and stronger components, they provide secure connections with easy installation using conventional lever riveters.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut Multi-Purpose with Countersunk Head | Zinc-Plated Steel | 10 PCS | by Wurth
Brand: Wurth
SKU: 94856040
Alternatively Known As: Rivet Nut, Rivnut, Threaded Insert, Blind Rivet Nut, Countersunk Rivet Nut
Technical Specifications
- Material: Steel
- Surface: Zinc plated
- Thread type x nominal diameter (D): M4
- Head diameter (d1): 8.3 mm
- Outer diameter (d2): 6.0 mm
- Length (l1): 13 mm
- Head height (k1): 1.5 mm
- Min./max. grip range (s1): 1.5-6.0 mm
- Tensile fracture load: 5200 N
- Max. tightening torque: 4.0 Nm
- Head type: Countersunk head
- RoHS-compliant: Yes
- Dimensions (H x L x W): 13mm x 8.3mm x 8.3mm
- Weight: 0.02 kg
Key Features
- Innovative and patented rivet nuts with large clamping length range
- Zinc-plated steel construction
- Chrome(VI)-free and RoHS-compliant
- Clean, secure closing
- Reduced storage costs due to small variety of types
- No mixing of different clamping ranges
- Complies with the EU Directive on end-of-life vehicles
Professional Installation Requirements
- Installation requires use of conventional lever riveters and should be performed by trained personnel to ensure secure and clean closing.
Applications
- Suitable for use as rivet and screw connection in thin-walled and stronger components
- Installation from one side, suitable for closed profiles
- Application with conventional lever riveters
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Chrome(VI)-free material reduces environmental and health hazards
- Complies with EU Directive on end-of-life vehicles promoting recyclability
- RoHS-compliant ensuring restriction of hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
Wurth Rivet Nut Multi-Purpose with Countersunk Head 10 PCS is available for immediate purchase, ideal for industrial and construction applications requiring reliable fastening solutions.
