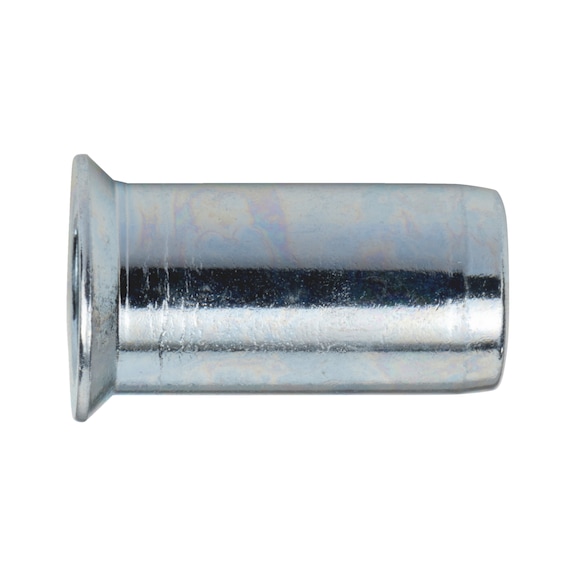

Rivet Nut Multi-Purpose with Countersunk Head | Zinc-Plated Steel | 10 PCS | by Wurth
Rivet nut multi-purpose with countersunk head is perfect for secure connections in thin-walled and stronger components. Made from zinc-plated steel, these innovative rivet nuts offer a large clamping length range and are RoHS-compliant, making them ideal for industrial, automotive, and construction applications. Designed for easy installation with conventional lever riveters, they ensure a clean and secure closing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut Multi-Purpose with Countersunk Head | Zinc-Plated Steel | 10 PCS | by Wurth
Brand: Wurth
SKU: 94856060
Alternatively Known As: Rivet Nut, Rivnut, Threaded Insert, Blind Rivet Nut, Countersunk Rivet Nut
Technical Specifications
- Material: Steel
- Surface: Zinc plated
- Thread type x nominal diameter (D): M6
- Head diameter (d1): 11.3 mm
- Outer diameter (d2): 9.0 mm
- Length (l1): 17.5 mm
- Head height (k1): 1.5 mm
- Min./max. grip range (s1): 1.5-6.0 mm
- RoHS-compliant: Yes
- Tensile fracture load: 15500 N
- Max. tightening torque: 11.0 Nm
- Head type: Countersunk head
- Dimensions (H x L x W): 17.5mm x 11.3mm x 11.3mm
- Weight: 0.05 kg
Key Features
- Innovative and patented rivet nuts with large clamping length range
- Zinc-plated steel construction
- Chrome(VI)-free and RoHS-compliant
- Clean, secure closing
- Reduced storage costs due to small variety of types
- No mixing of different clamping ranges
- Complies with EU Directive on end-of-life vehicles
Professional Installation Requirements
- Installation requires conventional lever riveters and should be performed by trained personnel to ensure secure and clean closing.
Applications
- Suitable for use as rivet and screw connection in thin-walled and stronger components
- Installation from one side, suitable for closed profiles
- Application with conventional lever riveters
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Chrome(VI)-free material reduces environmental and health hazards
- Complies with EU Directive on end-of-life vehicles promoting recyclability
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
Wurth Rivet Nut Multi-Purpose with Countersunk Head 10 PCS is available for immediate purchase, ideal for industrial, automotive, and construction applications.
