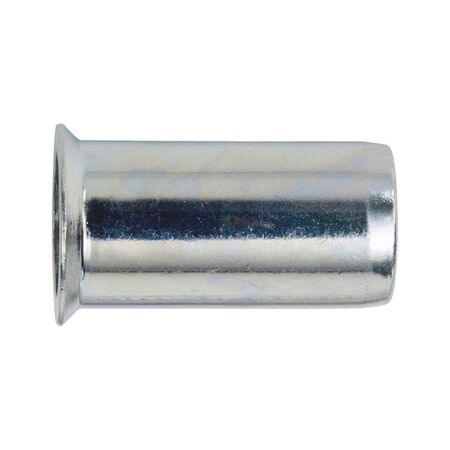

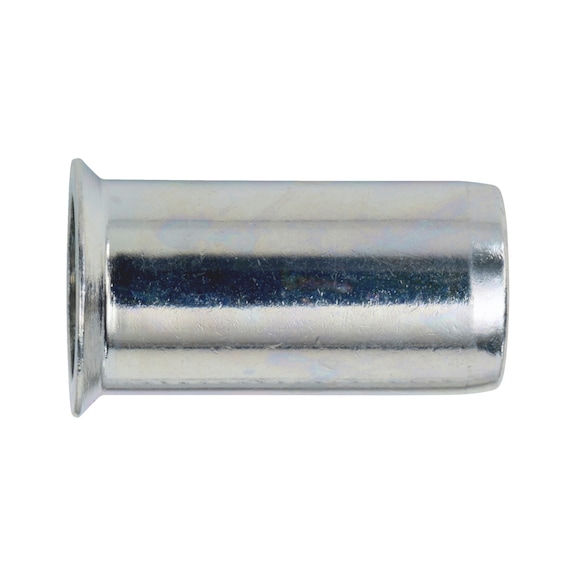

Rivet Nut Multi-Purpose | Countersunk Head | Zinc-Plated Steel | @Pack of 10 | by Wurth
Rivet nut multi-purpose with a countersunk head, designed for secure fastening in thin-walled and stronger components. Made from zinc-plated steel, these innovative rivet nuts offer a large clamping length range and are RoHS-compliant, making them ideal for industrial and construction applications. Perfect for installations requiring a clean and secure closing, they ensure reduced storage costs with a small variety of types.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut Multi-Purpose | Countersunk Head | Zinc-Plated Steel | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 94856080
Alternatively Known As: Rivet Nut Insert, Rivnut, Threaded Insert Nut, Blind Rivet Nut, Countersunk Rivet Nut
Technical Specifications
- Material: Steel
- Surface: Zinc plated
- Thread type x nominal diameter (D): M8
- Head diameter (d1): 13.3 mm
- Outer diameter (d2): 11.0 mm
- Length (l1): 21.5 mm
- Head height (k1): 1.5 mm
- Min./max. grip range (s1): 1.5-7.5 mm
- RoHS-compliant: Yes
- Tensile fracture load: 21500 N
- Max. tightening torque: 24 Nm
- Head type: Countersunk head
- Dimensions (H x L x W): 21mm x 21mm x 13mm
- Weight: 0.05 kg
Key Features
- Innovative and patented rivet nuts with large clamping length range
- Zinc-plated steel construction
- Chrome(VI)-free and RoHS-compliant
- Clean, secure closing
- Reduced storage costs due to small variety of types
- No mixing of different clamping ranges
- Complies with EU Directive on end-of-life vehicles
Professional Installation Requirements
- Installation requires conventional lever riveters and should be performed by trained personnel to ensure secure and clean closing.
Applications
- Suitable for use as rivet and screw connection in thin-walled and stronger components
- Installation from one side, suitable for closed profiles
- Application with conventional lever riveters
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Chrome(VI)-free material reduces environmental and health hazards
- Complies with EU Directive on end-of-life vehicles promoting recyclability
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth multi-purpose countersunk head rivet nuts are available for immediate purchase, ideal for industrial and construction fastening applications.
