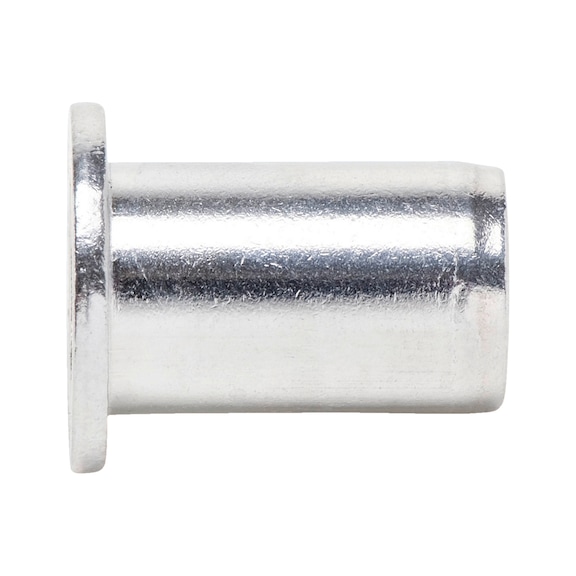

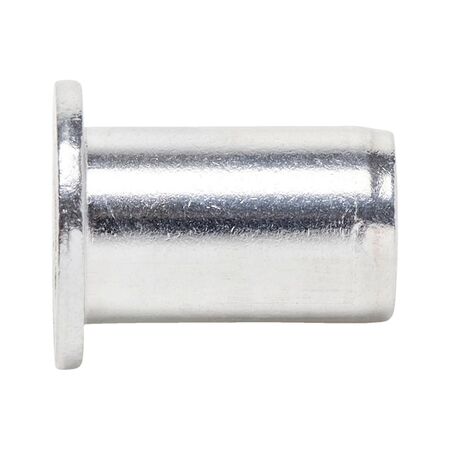

Rivet Nut Multi-Purpose Flat Head | Aluminium Material | Large Clamping Length Range | @Pack of 10 | by Wurth
Rivet nut multi-purpose flat head designed for versatile fastening applications. Made from chrome(VI)-free aluminium, these innovative rivet nuts cover the entire clamping thickness with one unit, reducing storage costs and ensuring clean, secure closures. Ideal for industrial, automotive, and construction use, they are suitable for installation in thin-walled and stronger components with conventional lever riveters.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut Multi-Purpose Flat Head | Aluminium Material | Large Clamping Length Range | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 9485506
Alternatively Known As: Rivet nut insert, threaded rivet nut, aluminium rivet nut, flat head rivet nut, blind rivet nut
Technical Specifications
- Material: Aluminium
- Surface: Plain
- Thread type x nominal diameter (D): M6
- Head diameter (d1): 13.0 mm
- Outer diameter (d2): 9.0 mm
- Length (l1): 19 mm
- Head height (k1): 1.5 mm
- Min./max. grip range (s1): 0.5-6.0 mm
- Drill hole diameter: 9.1 mm
- Tensile fracture load: 6500 N
- Max. tightening torque: 6 Nm
- Head type: Dome head
- Dimensions (H x L x W): 19mm x 19mm x 13mm
- Weight: 0.05 kg
Key Features
- Innovative and patented rivet nuts with large clamping length range
- Aluminium material, chrome(VI)-free
- Covers entire clamping thickness with one rivet nut instead of three
- Complies with EU Directive on end-of-life vehicles
- Reduced storage costs due to small variety of types
- Clean, secure closing
- No mixing of different clamping ranges
Professional Installation Requirements
- Installation requires use of conventional lever riveters; professional installation recommended for optimal performance and safety.
Applications
- Suitable for use as rivet and screw connection in thin-walled and stronger components
- Installation from one side, suitable for closed profiles
- Application with conventional lever riveters
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Chrome(VI)-free material reduces environmental and health hazards
- Complies with EU Directive on end-of-life vehicles promoting recyclability
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth multi-purpose flat head rivet nuts 10 PCS are available for immediate purchase, ideal for industrial, automotive, and construction fastening applications.
