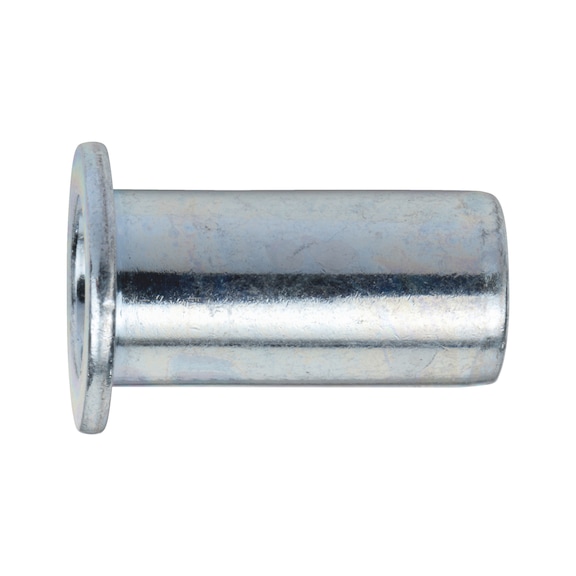

Rivet Nut Multi-Purpose Flat Head | Zinc Plated Steel | M8 Thread | @Pack of 10 | by Wurth
Rivet nut multi-purpose flat head designed for versatile fastening applications. Made from zinc-plated steel, these innovative rivet nuts feature a large clamping length range and are compliant with EU regulations. Ideal for thin-walled and stronger components, they ensure a clean, secure closing and are perfect for professional installations using conventional lever riveters.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut Multi-Purpose Flat Head | Zinc Plated Steel | M8 Thread | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 9485608
Alternatively Known As: Rivet nut, rivnut, threaded insert, blind rivet nut, nutsert
Technical Specifications
- Material: Steel
- Surface: Zinc plated transparent
- Thread type x nominal diameter (D): M8
- Head diameter (d1): 16.0 mm
- Outer diameter (d2): 11.0 mm
- Length (l1): 21.5 mm
- Head height (k1): 1.5 mm
- Min./max. grip range (s1): 0.5-7.5 mm
- Drill hole diameter: 11.1 mm
- Tensile fracture load: 21500 N
- Max. tightening torque: 24 Nm
- Head type: Dome head
- Dimensions (H x L x W): 21.5mm x 16mm x 16mm
- Weight: 0.05 kg
Key Features
- Innovative and patented rivet nuts with large clamping length range
- Zinc-plated steel construction
- Chrome(VI)-free and compliant with EU Directive on end-of-life vehicles
- Clean, secure closing
- Reduced storage costs due to small variety of types
- No mixing of different clamping ranges
Professional Installation Requirements
- Installation requires use of conventional lever riveters; professional installation recommended for optimal performance and safety.
Applications
- Suitable for use as rivet and screw connection in thin-walled and stronger components
- Installation from one side, suitable for closed profiles
- Application with conventional lever riveters
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Chrome(VI)-free material reduces environmental toxicity
- Complies with EU Directive on end-of-life vehicles promoting recyclability
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth multi-purpose flat head rivet nuts are available for immediate purchase, ideal for industrial and construction fastening applications.
