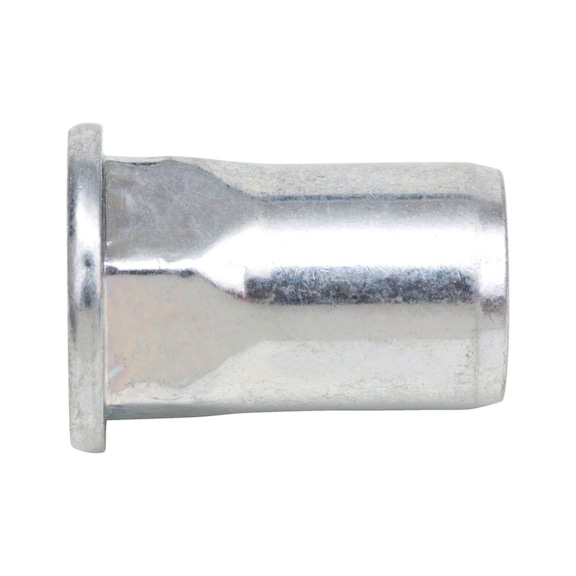

Rivet Nut with Partial Hexagon Shank | Zinc-Plated Steel | Dome Head Design | @Pack of 100 | by Wurth
Rivet nut with partial hexagon shank is perfect for mechanical fastening in coated components. Made from zinc-plated steel, it features a dome head design and excellent anti-rotation lock, making it ideal for automotive, construction, and industrial assembly. With a RoHS-compliant material, it ensures safety and durability in joining thin materials where a strong thread is required.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut with Partial Hexagon Shank | Zinc-Plated Steel | Dome Head Design | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 9483066
Alternatively Known As: Rivet Nut Insert, Threaded Insert Nut, Hex Shank Rivet Nut, Dome Head Rivet Nut
Technical Specifications
- Material: Steel
- Surface: Zinc plated
- RoHS-compliant: Yes

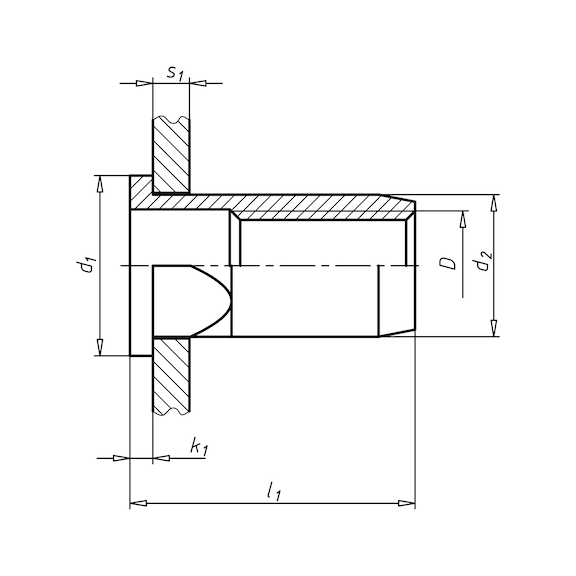

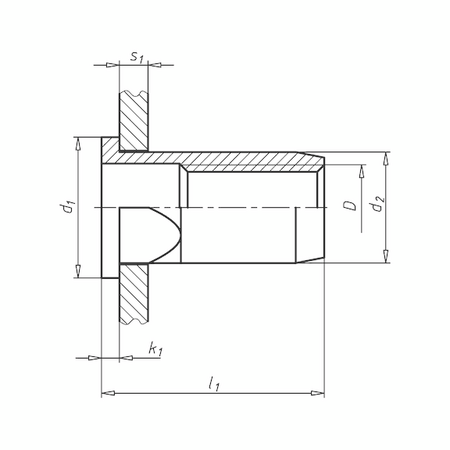

- Thread type x nominal diameter (D): M6
- Width across flats: 9 mm
- Length (l1): 17 mm
- Head diameter (d1): 12.5 mm
- Head height (k1): 1.6 mm
- Min./max. grip range (s1): 0.5-3 mm
- Tensile fracture load: 16600 N
- Shear-fracture load: 2900 N
- Max. tightening torque: 14 Nm
- Shank detail: With partial hexagon shank
- Head type: Truss head
- Dimensions (H x L x W): 17mm x 17mm x 9mm
- Weight: 0.2 kg
Key Features
- Zinc-plated steel with blue passivation
- Chromium(VI)-free for environmental safety
- Excellent anti-rotation lock
- Partial hexagon shank design
- Truss (dome) head type
Professional Installation Requirements
- Installation should be performed by trained personnel using appropriate tools to ensure correct torque and secure fastening.
Applications
- Mechanical fastening in coated components
- Use in automotive, construction, and industrial assembly
- Suitable for joining thin materials where a strong thread is required
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Chromium(VI)-free coating reduces environmental and health hazards
- RoHS-compliant material ensures reduced toxic substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
Wurth Rivet Nut with partial hexagon shank and dome head 100 PCS is available for immediate purchase, ideal for mechanical fastening in coated components and industrial applications.
