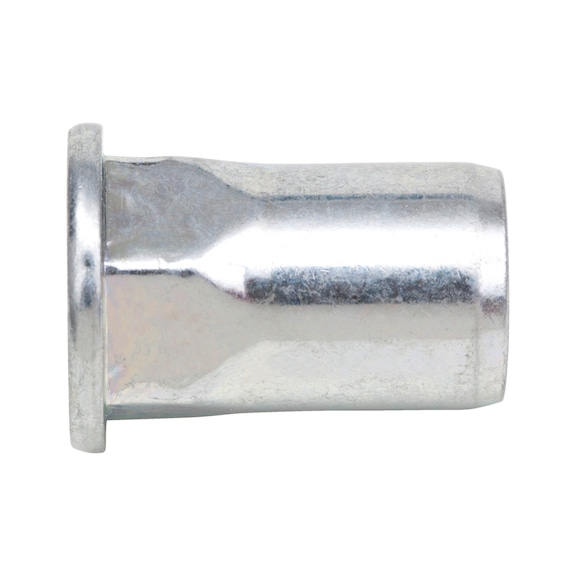

Rivet Nut with Partial Hexagon Shank | Zinc-Plated Steel | Truss Head Design | @Pack of 100 | by Wurth
Rivet nut with partial hexagon shank is designed for robust fastening in mechanical and structural assemblies. Made from zinc-plated steel, it features a truss head for excellent anti-rotation lock, making it ideal for coated components. With a grip range of 0.8-4 mm and RoHS compliance, this pack of 100 is perfect for professionals seeking reliable and environmentally safe fastening solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut with Partial Hexagon Shank | Zinc-Plated Steel | Truss Head Design | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 94830610
Alternatively Known As: Rivet Nut, Rivnut, Threaded Insert, Blind Nut, Hex Shank Rivet Nut
Technical Specifications
- Material: Steel
- Surface: Zinc plated, blue passivated
- RoHS-compliant: Yes

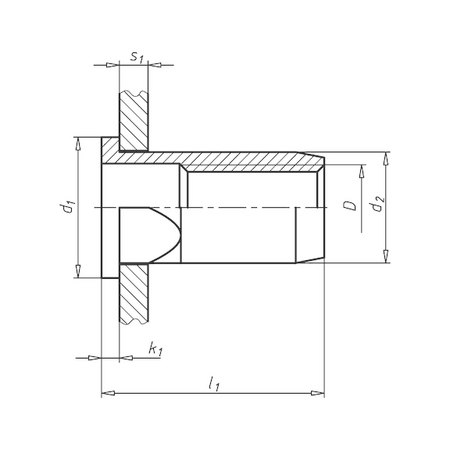

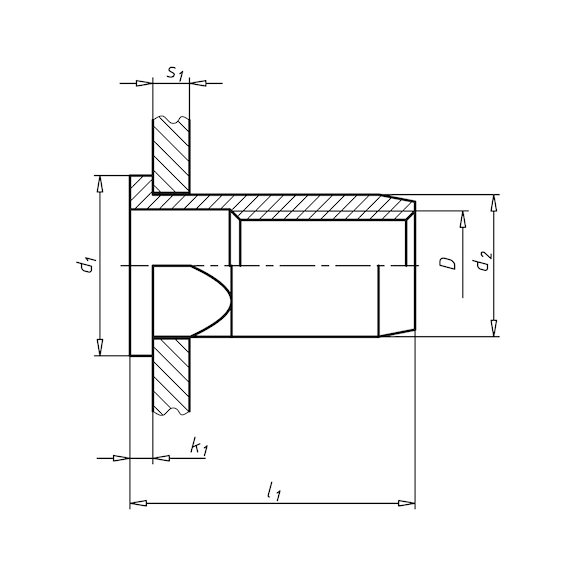

- Thread type x nominal diameter (D): M10
- Width across flats: 13 mm
- Length (l1): 24 mm
- Head diameter (d1): 16.5 mm
- Head height (k1): 2.1 mm
- Min./max. grip range (s1): 0.8-4 mm
- Tensile fracture load: 29400 N
- Shear-fracture load: 3400 N
- Max. tightening torque: 35 Nm
- Shank detail: With partial hexagon shank
- Head type: Truss head
- Dimensions (H x L x W): 24mm x 16.5mm x 13mm
- Weight: 0.1 kg
Key Features
- Zinc-plated steel with blue passivated finish
- Chromium(VI)-free for environmental safety
- Excellent anti-rotation lock
- Partial hexagon shank design
- Truss (dome) head type
Professional Installation Requirements
- Installation should be performed by trained personnel using appropriate tools to ensure correct torque and secure fastening.
Applications
- Used for fastening in coated components
- Suitable for mechanical and structural assembly requiring strong anti-rotation lock
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Chromium(VI)-free coating reduces environmental and health hazards
- RoHS-compliant material ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Rivet Nut with partial hexagon shank and dome head 100 PCS is available for immediate purchase, ideal for industrial and mechanical fastening applications.
