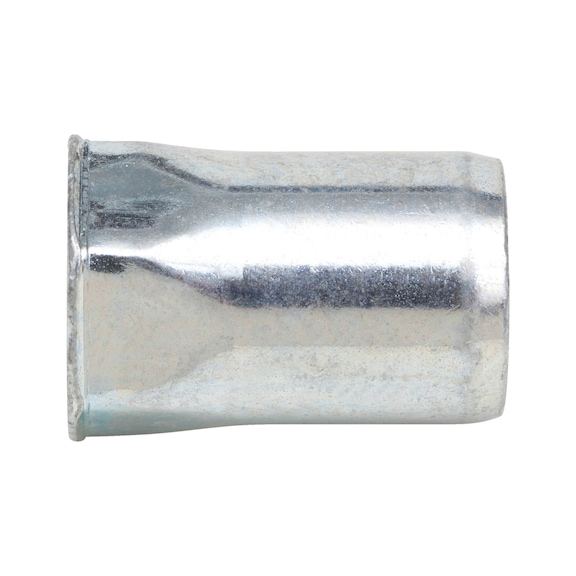

Rivet Nut with Semi-Hexagonal Shank | Zinc-Plated Steel | 100 PCS | by Wurth
Rivet nut with semi-hexagonal shank designed for secure fastening in mechanical assembly and repair tasks. Made from zinc-plated steel, it features a small countersunk head that eliminates the need for countersinking drill holes. Ideal for coated components, this product ensures excellent anti-rotation lock and is RoHS-compliant, making it a reliable choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut with Semi-Hexagonal Shank | Zinc-Plated Steel | 100 PCS | by Wurth
Brand: Wurth
SKU: 9483055
Alternatively Known As: Rivet Nut Insert, Threaded Insert Nut, Blind Rivet Nut, Nutsert, Semi-Hex Rivet Nut
Technical Specifications
- Material: Steel
- Surface: Zinc plated, blue passivated
- RoHS-compliant: Yes
- Thread type x nominal diameter (D): M5
- Width across flats: 7 mm
- Length (l1): 14 mm
- Head diameter (d1): 8 mm
- Outer diameter (d2): 8 mm
- Head height (k1): 0.8 mm
- Min./max. grip range (s1): 0.5-3 mm
- Tensile fracture load: 4900 N
- Shear-fracture load: 1760 N
- Max. tightening torque: 7 Nm
- Head type: Small countersunk head
- Design: With a small countersunk head and partial hexagon shank
- Dimensions (H x L x W): 14mm x 14mm x 7mm
- Weight: 0.05 kg
Key Features
- Zinc-plated steel, blue passivated and Chromium(VI)-free
- Excellent anti-rotation lock
- Minimal head protrusion
- No countersinking of drill holes necessary
- Small countersunk head design with partial hexagon shank
Professional Installation Requirements
- Installation should be performed by trained personnel using appropriate rivet nut tools to ensure secure fastening and safety.
Applications
- Use with coated components requiring secure fastening
- Suitable for applications where no countersinking of drill holes is necessary
- Ideal for mechanical assembly and repair tasks
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Chromium(VI)-free passivation reduces environmental and health hazards
- RoHS-compliant material ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Rivet Nut with semi-hexagonal shank and dome/countersunk head 100 PCS is available now for immediate purchase. Ideal for mechanical assembly and repair applications.
