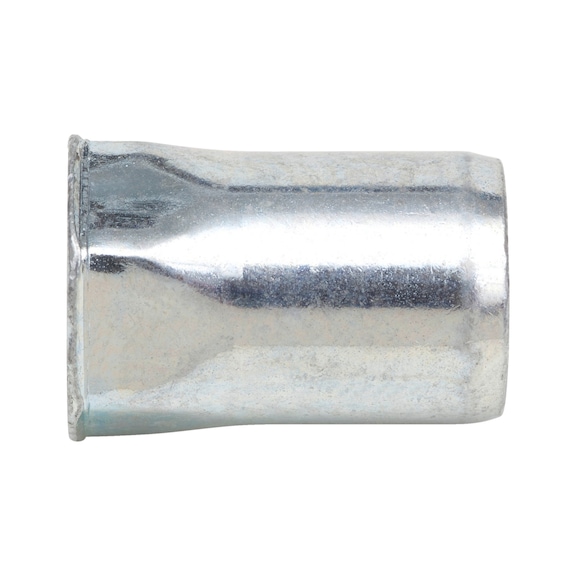

Rivet Nut with Semi-Hexagonal Shank | Zinc-Plated Steel | Anti-Rotation Lock | Minimal Head Protrusion | @Pack of 100 | by Wurth
Rivet nut with semi-hexagonal shank is designed for secure fastening in thin materials, featuring a zinc-plated steel construction and excellent anti-rotation lock. Ideal for industrial and construction applications, this pack of 100 ensures minimal head protrusion and no need for countersinking drill holes, making installation quick and efficient.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut with Semi-Hexagonal Shank | Zinc-Plated Steel | Anti-Rotation Lock | Minimal Head Protrusion | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 9483058
Alternatively Known As: Rivet Nut Insert, Threaded Insert Nut, Blind Rivet Nut, Nutsert

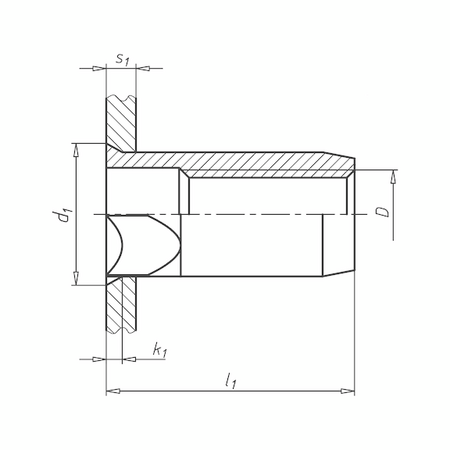

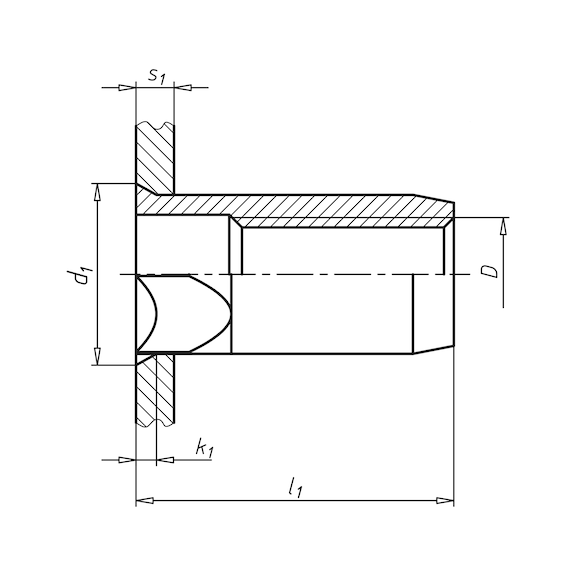

Technical Specifications
- Material: Steel
- Surface: Zinc plated, blue passivated
- RoHS-compliant: Yes
- Thread type x nominal diameter (D): M8
- Width across flats: 11 mm
- Length (l1): 17 mm
- Head diameter (d1): 12 mm
- Outer diameter (d2): 12 mm
- Head height (k1): 0.8 mm
- Min./max. grip range (s1): 0.5-3 mm
- Tensile fracture load: 21560 N
- Shear-fracture load: 3020 N
- Max. tightening torque: 21 Nm
- Head type: Small countersunk head
- Design: With a small countersunk head and partial hexagon shank
- Dimensions (H x L x W): 0.8mm x 17mm x 11mm
- Weight: 0.05 kg
Key Features
- Zinc-plated steel, blue passivated, Chromium(VI)-free
- Excellent anti-rotation lock
- Minimal head protrusion
- No countersinking of drill holes necessary
Professional Installation Requirements
- Installation should be performed by trained personnel using appropriate tools to ensure correct torque and secure fastening.
Applications
- Use with coated components
- Suitable for applications requiring anti-rotation lock
- Ideal for fastening in thin materials with minimal head protrusion
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Chromium(VI)-free passivation reduces environmental and health hazards
- RoHS-compliant material ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Rivet Nut with semi-hexagonal shank and dome/countersunk head 100 PCS is available for immediate purchase, ideal for industrial and construction fastening applications.
