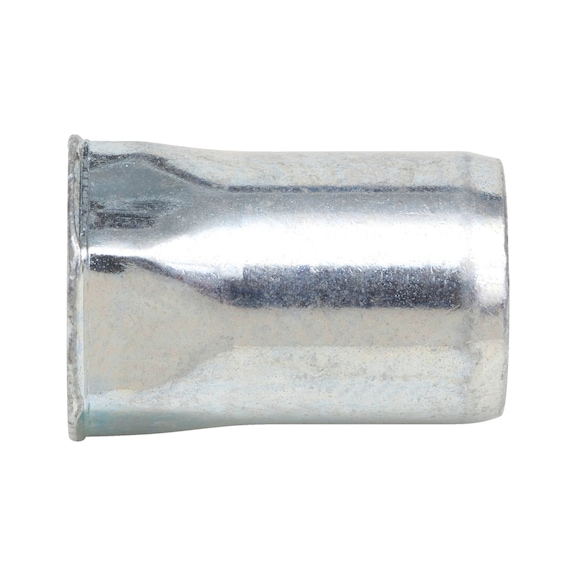

Rivet Nut with Semi-Hexagonal Shank | Zinc-Plated Steel | Anti-Rotation Lock | @Pack of 100 | by Wurth
Rivet nut with semi-hexagonal shank designed for secure fastening in coated components. Made from zinc-plated steel with a blue passivation finish, it features an excellent anti-rotation lock and requires no countersinking of drill holes. Ideal for mechanical assembly and repair tasks, this product is RoHS-compliant and environmentally friendly.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut with Semi-Hexagonal Shank | Zinc-Plated Steel | Anti-Rotation Lock | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 9483054
Alternatively Known As: Rivet Nut, Rivnut, Threaded Insert, Blind Nut, Semi-Hex Rivet Nut
Technical Specifications
- Material: Steel
- Surface: Zinc plated, blue passivated
- RoHS-compliant: Yes
- Thread type x nominal diameter (D): M4
- Width across flats: 6 mm
- Length (l1): 12.5 mm
- Head diameter (d1): 7 mm
- Outer diameter (d2): 7 mm
- Head height (k1): 0.8 mm
- Min./max. grip range (s1): 0.5-3 mm
- Tensile fracture load: 3530 N
- Shear-fracture load: 1470 N
- Max. tightening torque: 5 Nm
- Head type: Small countersunk head
- Design: Small countersunk head with partial hexagon shank
- Dimensions (H x L x W): 12.5mm x 12.5mm x 7mm
- Weight: 0.02 kg
Key Features
- Made of zinc-plated steel with blue passivation
- Chromium(VI)-free for environmental safety
- Excellent anti-rotation lock
- Minimal head protrusion
- No countersinking of drill holes necessary
Professional Installation Requirements
- Installation should be performed by trained personnel using appropriate tools to ensure correct torque and secure fastening.
Applications
- Use with coated components requiring secure fastening
- Suitable for applications where no countersinking of drill holes is necessary
- Ideal for mechanical assembly and repair tasks
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Chromium(VI)-free coating reduces environmental and health hazards
- RoHS-compliant material ensures reduced toxic substances
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Rivet Nut with semi-hexagonal shank and dome/countersunk head 100 PCS is available for immediate purchase, ideal for mechanical fastening in coated components.
