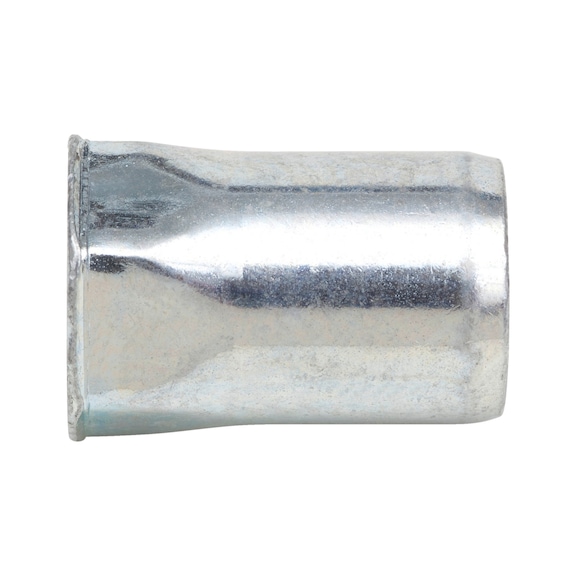

Rivet Nut with Semi-Hexagonal Shank | Zinc-Plated Steel | Anti-Rotation Lock | @Pack of 100 | by Wurth
Rivet nut with semi-hexagonal shank designed for strong fastening in thin materials. Made from zinc-plated steel, it features excellent anti-rotation locking and minimal head protrusion, making it ideal for mechanical and structural assembly. Perfect for use with coated components, this pack of 100 ensures durability and compliance with AS/NZS 1170 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut with Semi-Hexagonal Shank | Zinc-Plated Steel | Anti-Rotation Lock | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 9483056
Alternatively Known As: Rivet Nut, Rivnut, Blind Nut, Threaded Insert, Semi-Hex Rivet Nut
Technical Specifications
- Material: Steel
- Surface: Zinc plated, blue passivated, Chromium(VI)-free
- Thread type x nominal diameter (D): M6
- Width across flats: 9 mm
- Length (l1): 16 mm
- Head diameter (d1): 10 mm
- Outer diameter (d2): 10 mm
- Head height (k1): 0.8 mm
- Min./max. grip range (s1): 0.5-3 mm
- Tensile fracture load: 14700 N
- Shear-fracture load: 2940 N
- Max. tightening torque: 14 Nm
- Head type: Small countersunk head
- Design: With a small countersunk head and partial hexagon shank
- Dimensions (H x L x W): 16mm x 16mm x 9mm
- Weight: 0.05 kg
Key Features
- Zinc-plated steel, blue passivated and Chromium(VI)-free
- Excellent anti-rotation lock
- Minimal head protrusion
- No countersinking of drill holes necessary
Professional Installation Requirements
- Installation requires appropriate rivet nut tools and should be performed by trained personnel to ensure proper torque and secure fastening.
Applications
- Use with coated components
- Suitable for fastening in thin materials
- Ideal for mechanical and structural assembly requiring strong, anti-rotation locking
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Chromium(VI)-free passivation reduces environmental and health hazards
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Rivet Nut with semi-hexagonal shank and dome/countersunk head 100 PCS is available for immediate purchase. Ideal for mechanical fastening in coated components and structural applications.
