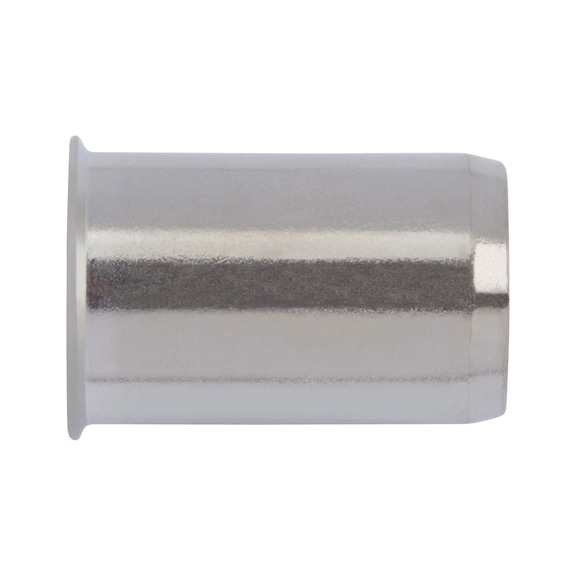

Rivet Nut Small Countersunk Head A2 Stainless Steel | M5 | 11000 N Tensile Load | 10 PCS | by Wurth
Rivet nut small countersunk head A2 stainless steel is perfect for mechanical fastening in thin materials, offering a high tensile fracture load of 11000 N and a shear-fracture load of 3900 N. Ideal for automotive repairs and sheet metal assembly, this durable solution ensures flush mounting and reliable performance in critical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut Small Countersunk Head A2 Stainless Steel | M5 | 11000 N Tensile Load | 10 PCS | by Wurth
Brand: Wurth
SKU: 94215
Alternatively Known As: Rivet Nut, Countersunk Rivet Nut, Threaded Insert, Blind Rivet Nut, Nutsert
Technical Specifications
- Material: Stainless steel A2
- Surface: Plain
- Thread type x nominal diameter (D): M5
- Head diameter (d1): 8.0 mm
- Outer diameter (d2): 6.95 mm
- Length (l1): 11.5 mm
- Head height (k1): 0.4 mm
- Min./max. grip range (s1): 0.25-3.00 mm
- Drill hole diameter: 7.0 mm
- Design: With small countersunk head
- Tensile fracture load: 11000 N
- Shear-fracture load: 3900 N
- Max. tightening torque: 5 Nm
- Head type: Small countersunk head
- Dimensions (H x L x W): 11.5mm x 11.5mm x 8mm
- Weight: 0.02 kg
Key Features
- Extra-small countersunk head for flush mounting
- Made from durable stainless steel A2
- High tensile fracture load of 11000 N
- Shear-fracture load of 3900 N
- Max tightening torque of 5 Nm
Professional Installation Requirements
- Installation requires appropriate tools such as a rivet nut setter and drill; professional installation recommended for critical applications.
Applications
- Mechanical fastening in thin materials
- Sheet metal assembly
- Automotive repairs and manufacturing
- Electrical enclosures and panels
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Corrosion-resistant stainless steel extends product life reducing waste
- Reusable fastening solution minimizes material consumption
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Rivet Nut Small Countersunk Head A2 Stainless Steel M5 10 PCS is available for immediate purchase, ideal for mechanical fastening in automotive, construction, and manufacturing applications.
