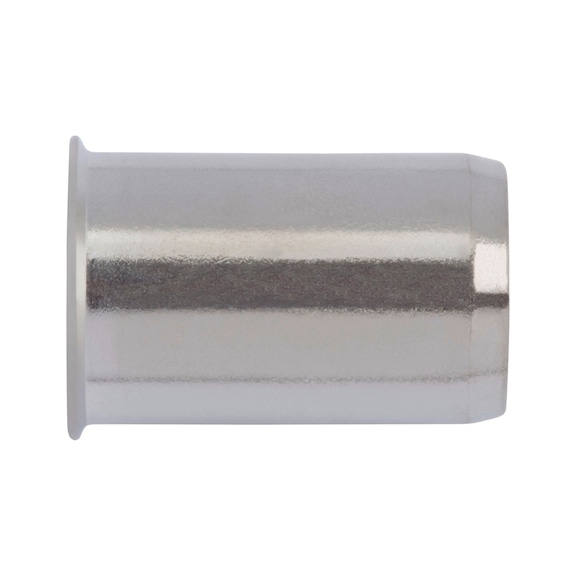

Rivet Nut Small Countersunk Head A2 Stainless Steel | M8 Thread | 27000 N Tensile Load | 10 PCS | by Wurth
Rivet nut with a small countersunk head design, made from durable A2 stainless steel, is perfect for flush mounting in thin materials. With a high tensile fracture load of 27000 N and a maximum tightening torque of 20 Nm, it ensures secure fastening for automotive, machinery, and metal fabrication applications. Ideal for professionals seeking reliable threaded inserts in corrosion-resistant assemblies.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut Small Countersunk Head A2 Stainless Steel | M8 Thread | 27000 N Tensile Load | 10 PCS | by Wurth
Brand: Wurth
SKU: 94218
Alternatively Known As: Rivet Nut Insert, Threaded Insert Nut, Blind Rivet Nut, Countersunk Rivet Nut

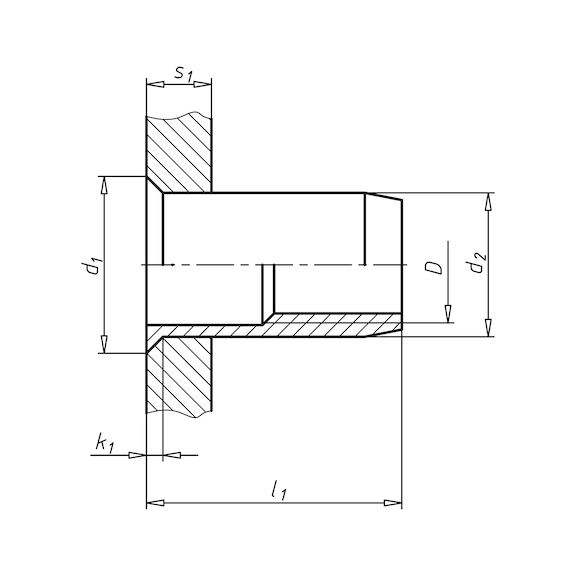

Technical Specifications
- Material: Stainless steel A2
- Surface: Plain
- Thread type x nominal diameter (D): M8
- Head diameter (d1): 11.0 mm
- Outer diameter (d2): 9.95 mm
- Length (l1): 15.5 mm
- Head height (k1): 0.4 mm
- Min./max. grip range (s1): 0.25-3.00 mm
- Drill hole diameter: 10.0 mm
- Design: With small countersunk head
- Tensile fracture load: 27000 N
- Shear-fracture load: 5200 N
- Max. tightening torque: 20 Nm
- Head type: Small countersunk head
- Dimensions (H x L x W): 15.5mm x 15.5mm x 11mm
- Weight: 0.02 kg
Key Features
- Extra-small countersunk head design for flush mounting
- Made from durable stainless steel A2 for corrosion resistance
- High tensile fracture load of 27000 N and shear-fracture load of 5200 N
- Max tightening torque of 20 Nm ensures secure fastening
Professional Installation Requirements
- Installation requires appropriate tools and training to ensure correct torque and secure fastening; professional installation recommended for critical applications.
Applications
- Used for fastening in thin materials where a strong threaded insert is required
- Ideal for automotive, machinery, and metal fabrication applications
- Suitable for use in stainless steel and corrosion-resistant assemblies
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Made from stainless steel which is recyclable and corrosion resistant, extending product life and reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Rivet Nut Small Countersunk Head A2 Stainless Steel M8 10 PCS is available for immediate purchase, ideal for industrial and automotive fastening applications.
