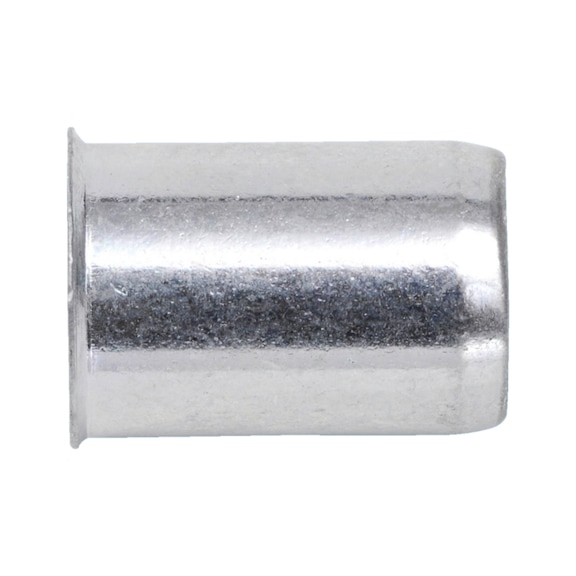

Rivet Nut with Small Countersunk Head | Zinc-Plated Steel | 25 PCS | by Wurth
Rivet nut with small countersunk head made from zinc-plated steel is perfect for secure threaded connections in industrial, automotive, and construction applications. With a grip range of 0.5-3.0 mm and a tensile fracture load of 15000 N, it ensures reliable performance. Designed for easy installation from one side, this product eliminates the need for countersinking drill holes, making it ideal for closed profiles.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut with Small Countersunk Head | Zinc-Plated Steel | 25 PCS | by Wurth
Brand: Wurth
SKU: 91760
Alternatively Known As: Rivet Nut, Rivnut, Blind Nut, Threaded Insert, Rivet Threaded Nut
Technical Specifications
- Thread type x nominal diameter (D): M6
- Head diameter (d1): 10.5 mm
- Outer diameter (d2): 9.4 mm
- Length (l1): 15 mm
- Head height (k1): 0.60 mm
- Min./max. grip range (s1): 0.5-3.0 mm
- Material: Steel
- Surface: Zinc plated
- RoHS-compliant: Yes
- Tensile fracture load: 15000 N
- Shear-fracture load: 4400 N
- Max. tightening torque: 10 Nm
- Drill hole diameter: 9.5 mm
- Head type: Small countersunk head
- Dimensions (H x L x W): 15mm x 10.5mm x 10.5mm
- Weight: 0.02 kg
Key Features
- Can be used as riveted and screwed connections
- Installation from one side, suitable for closed profiles
- Simple, fast, and mostly automatic installation
- No countersinking of drill holes necessary
- Consistently high installation quality
- Anti-rotation connection with load-bearing thread
- Improved efficiency due to faster operation and secure connections
Professional Installation Requirements
- Professional installation recommended to ensure correct torque and secure fitting, especially for load-bearing applications.
Applications
- Suitable for riveted and screwed connections
- Installation from one side, ideal for closed profiles
- Mounting additional components using conventional screws
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Zinc plating provides corrosion resistance, extending product life and reducing waste
- RoHS-compliant material ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
Available for immediate purchase, ideal for industrial, automotive, and construction applications requiring secure threaded connections.
