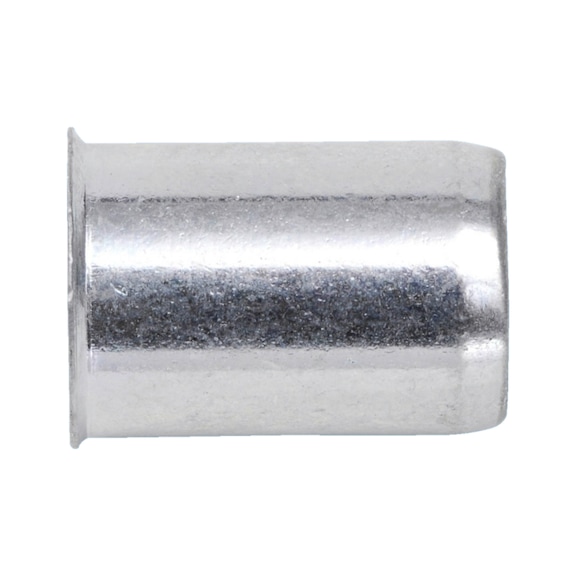

Rivet Nut with Small Countersunk Head | Zinc-Plated Steel | Blue Passivated | @Pack of 10 | by Wurth
Rivet nut with small countersunk head made from zinc-plated steel is perfect for secure fastening in industrial and construction applications. Designed for easy installation from one side, it eliminates the need for countersinking drill holes, ensuring high installation quality. Ideal for closed profiles, this pack of 10 rivet nuts enhances efficiency and provides reliable connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut with Small Countersunk Head | Zinc-Plated Steel | Blue Passivated | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 91721638
Alternatively Known As: Rivet Nut, Rivnut, Threaded Insert, Blind Rivet Nut, Countersunk Rivet Nut
Technical Specifications
- Thread type x nominal diameter (D): UNC3/8
- Head diameter (d1): 0.540 in (13.72 mm)
- Outer diameter (d2): 0.500 in (12.7 mm)
- Length (l1): 0.708 in (17.98 mm)
- Head height (k1): 0.020 in (0.51 mm)
- Min./max. grip range (s1): 0.04-0.16 in (1.02-4.06 mm)
- Material: Steel
- Surface: Zinc plated, blue passivated
- Tensile fracture load: 0 N (guideline value)
- Shear-fracture load: 0 N (guideline value)
- Max. tightening torque: 160 lbf.ft
- Drill hole diameter: 0.504 in (12.8 mm)
- Head type: Countersunk head
- Dimensions (H x L x W): 18mm x 18mm x 13mm
- Weight: 0.02 kg
Key Features
- Can be used as riveted and screwed connections
- Installation from one side, suitable for closed profiles
- Simple, fast, and mostly automatic installation
- No countersinking of drill holes necessary
- Consistently high installation quality
- Anti-rotation connection with load-bearing thread
- Improved efficiency due to faster operation and secure connections
Professional Installation Requirements
- Installation should be performed by a trained professional to ensure proper setting and secure connections.
Applications
- Suitable for riveted and screwed connections
- Installation from one side, ideal for closed profiles
- Mounting additional components using conventional screws
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable zinc plating provides corrosion resistance, extending product life and reducing waste
- Enables secure and efficient assembly, reducing material waste during installation
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Rivet Nut with Small Countersunk Head Zinc-Plated Steel 10 PCS is available for immediate purchase, ideal for industrial and construction applications requiring secure fastening solutions.
