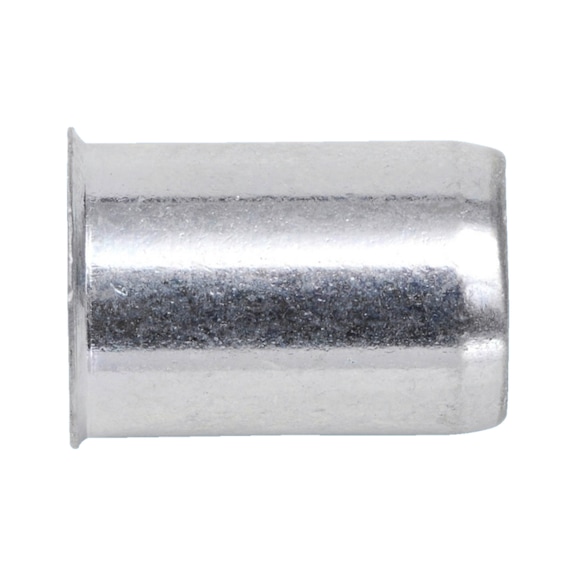

Rivet Nut with Small Countersunk Head | Zinc-Plated Steel | Blue Passivated | @Pack of 10 | by Wurth
Rivet nut with small countersunk head made from zinc-plated steel is perfect for secure fastening in industrial and construction applications. Designed for easy installation from one side, it eliminates the need for countersinking drill holes, ensuring high installation quality. Ideal for closed profiles, this pack of 10 rivet nuts provides durable and reusable connections, enhancing efficiency and reducing material damage.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut with Small Countersunk Head | Zinc-Plated Steel | Blue Passivated | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 917218516
Alternatively Known As: Rivet Nut, Rivnut, Threaded Insert, Blind Rivet Nut, Countersunk Rivet Nut
Technical Specifications
- Thread type x nominal diameter (D): UNC5/16
- Head diameter (d1): 0.456 in (11.58 mm)
- Outer diameter (d2): 0.416 in (10.57 mm)
- Length (l1): 0.63 in (16 mm)
- Head height (k1): 0.020 in (0.5 mm)
- Min./max. grip range (s1): 0.04-0.16 in (1-4 mm)
- Material: Steel
- Surface: Zinc plated, blue passivated
- Max. tightening torque: 145 lbf.ft (196.5 Nm)
- Drill hole diameter: 0.420 in (10.67 mm)
- Head type: Countersunk head
- Dimensions (H x L x W): 16mm x 16mm x 11mm
- Weight: 0.02 kg
Key Features
- Can be used as riveted and screwed connections
- Installation from one side, suitable for closed profiles
- Simple, fast, and mostly automatic installation
- No countersinking of drill holes necessary
- Consistently high installation quality
- Anti-rotation connection with load-bearing thread
- Improved efficiency due to faster operation and secure connections
Professional Installation Requirements
- Installation should be performed by trained personnel using appropriate rivet nut tools to ensure secure and consistent fastening.
Applications
- Suitable for riveted and screwed connections
- Installation from one side, ideal for closed profiles
- Mounting additional components using conventional screws
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable zinc plating extends product life reducing waste
- Enables secure and reusable connections minimizing material damage
Warranty Information
Standard manufacturer warranty applies.
Available Now
Wurth Rivet Nut with Small Countersunk Head Zinc-Plated Steel 10 PCS is available for immediate purchase, ideal for industrial and construction fastening applications.
