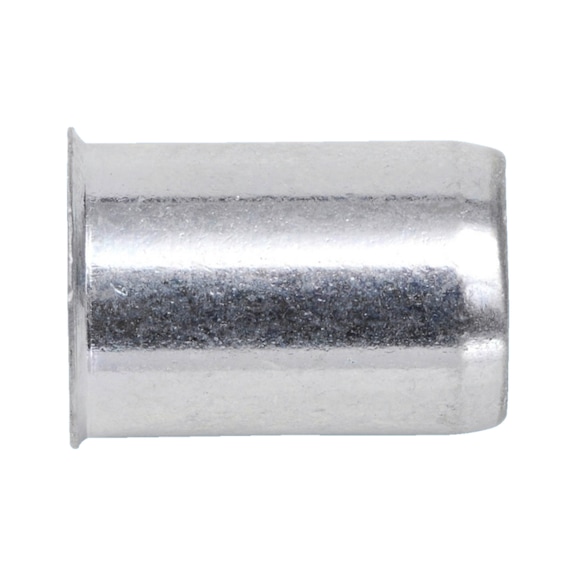

Rivet Nut with Small Countersunk Head | Zinc-Plated Steel | Blue Passivated | @Pack of 10 | by Wurth
Rivet nut with small countersunk head made from zinc-plated steel is perfect for secure fastening in metalworking applications. Designed for easy installation from one side, it’s ideal for automotive, construction, and industrial assembly. Enjoy improved efficiency with a load-bearing thread and no need for countersinking drill holes, ensuring consistently high installation quality.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut with Small Countersunk Head | Zinc-Plated Steel | Blue Passivated | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 917224316
Alternatively Known As: Rivet Nut, Rivnut, Blind Nut, Threaded Insert, Countersunk Rivet Nut
Technical Specifications
- Thread type x nominal diameter: UNC 3/16
- Head diameter: 0.320 in (8.13 mm)
- Outer diameter: 0.280 in (7.11 mm)
- Length: 0.464 in (11.78 mm)
- Head height: 0.020 in (0.51 mm)
- Min./max. grip range: 0.02-0.1 in (0.5-2.54 mm)
- Material: Steel
- Surface: Zinc plated, blue passivated
- Max. tightening torque: 70 lbf.ft (95 Nm)
- Drill hole diameter: 0.284 in (7.21 mm)
- Head type: Countersunk head
- Dimensions (H x L x W): 12mm x 12mm x 8mm
- Weight: 0.02 kg
Key Features
- Can be used as riveted and screwed connections
- Installation from one side, suitable for closed profiles
- Simple, fast, and mostly automatic installation
- No countersinking of drill holes necessary
- Consistently high installation quality
- Anti-rotation connection with load-bearing thread
- Improved efficiency with faster operation and secure connections
Professional Installation Requirements
- Installation should be performed by trained personnel using appropriate rivet nut tools to ensure secure and reliable fastening.
Applications
- Suitable for riveted and screwed connections in metalworking
- Installation in closed profiles from one side
- Mounting additional components using conventional screws
- Use in automotive, construction, and industrial assembly
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life
- Enables secure and durable connections reducing need for replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Rivet Nut with small countersunk head zinc-plated steel 10 PCS is available for immediate purchase. Ideal for industrial and construction fastening applications.
