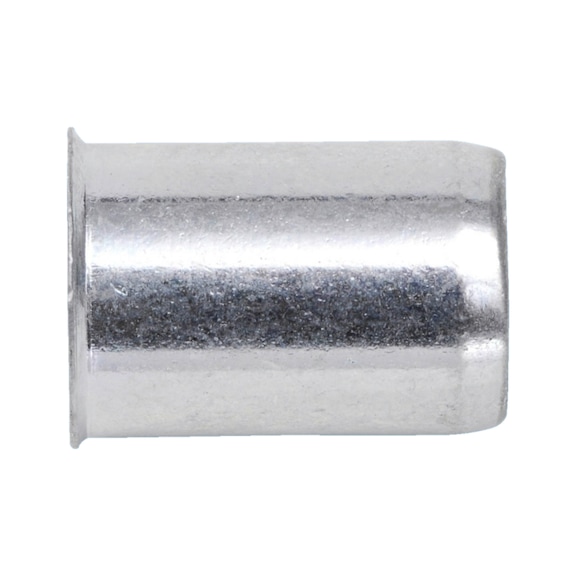

Rivet Nut with Small Countersunk Head | Zinc-Plated Steel | M10 | 10 PCS | by Wurth
Rivet nut with small countersunk head made from zinc-plated steel, perfect for secure fastening in metalworking and fabrication. Designed for easy installation from one side, it’s ideal for closed profiles and thin sheet metal. With a tensile fracture load of 32000 N and shear-fracture load of 7000 N, this product ensures high-quality connections and improved efficiency in your projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut with Small Countersunk Head | Zinc-Plated Steel | M10 | 10 PCS | by Wurth
Brand: Wurth
SKU: 917100
Alternatively Known As: Rivet Nut, Blind Nut, Rivnut, Threaded Insert, Countersunk Rivet Nut
Technical Specifications
- Thread type x nominal diameter: M10
- Head diameter: 15.4 mm
- Outer diameter: 14.1 mm
- Length: 17 mm
- Head height: 0.7 mm
- Grip range: 1.0-3.0 mm
- Material: Steel
- Surface: Zinc plated
- RoHS-compliant: Yes
- Tensile fracture load: 32000 N
- Shear-fracture load: 7000 N
- Max. tightening torque: 48 Nm
- Drill hole diameter: 14.2 mm
- Head type: Small countersunk head
- Dimensions (H x L x W): 17mm x 17mm x 15mm
- Weight: 0.05 kg
Key Features
- Can be used as riveted and screwed connections providing secure fastening
- Installation from one side, suitable for closed profiles
- Simple, fast, and mostly automatic installation
- No countersinking of drill holes necessary
- Consistently high installation quality
- Anti-rotation connection with load-bearing thread
- Improved efficiency due to faster operation and secure connections
Professional Installation Requirements
- Installation should be performed by trained personnel using appropriate rivet nut tools to ensure secure and consistent fastening.
Applications
- Suitable for riveted and screwed connections in metalworking and fabrication
- Ideal for installation in closed profiles and thin sheet metal
- Used for mounting additional components with conventional screws
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life
- RoHS-compliant material reduces hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Rivet Nut with Small Countersunk Head Zinc-Plated Steel M10 10 PCS is available for immediate purchase, ideal for metal fabrication and assembly applications.
