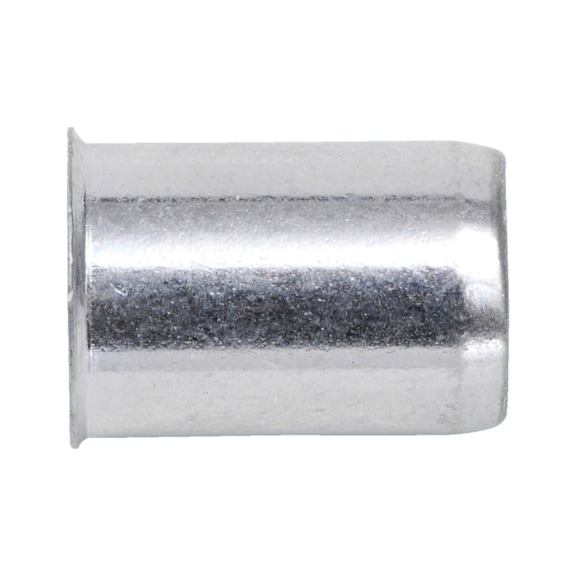

Rivet Nut with Small Countersunk Head | Zinc-Plated Steel | M3 Thread | 25 PCS | by Wurth
Rivet nut with small countersunk head designed for secure fastening in metalworking applications. Made from zinc-plated steel, these M3 threaded inserts are ideal for installation in closed profiles and thin sheet metal. With a grip range of 0.3-1.5 mm, they ensure consistent quality and efficiency, making them perfect for both riveted and screwed connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut with Small Countersunk Head | Zinc-Plated Steel | M3 Thread | 25 PCS | by Wurth
Brand: Wurth
SKU: 91730
Alternatively Known As: Rivet Nut, Blind Nut, Rivnut, Threaded Insert, Countersunk Rivet Nut
Technical Specifications
- Thread type x nominal diameter (D): M3
- Head diameter (d1): 5.3 mm
- Outer diameter (d2): 4.7 mm
- Length (l1): 9 mm
- Head height (k1): 0.40 mm
- Min./max. grip range (s1): 0.3-1.5 mm
- Material: Steel
- Surface: Zinc plated
- RoHS-compliant: Yes
- Tensile fracture load: 4000 N
- Shear-fracture load: 1500 N
- Max. tightening torque: 1.2 Nm
- Drill hole diameter: 4.8 mm
- Head type: Small countersunk head
- Dimensions (H x L x W): 9mm x 5.3mm x 5.3mm
- Weight: 0.02 kg
Key Features
- Can be used as riveted and screwed connections providing secure fastening
- Installation from one side, suitable for closed profiles
- Simple, fast, and mostly automatic installation
- No countersinking of drill holes necessary
- Consistently high installation quality
- Anti-rotation connection with load-bearing thread
- Improved efficiency due to faster operation and secure connections
Professional Installation Requirements
- Installation should be performed by trained personnel using appropriate rivet nut tools to ensure secure and consistent fastening.
Applications
- Suitable for riveted and screwed connections in metalworking and fabrication
- Ideal for installation in closed profiles and thin sheet metal
- Used for mounting additional components with conventional screws
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing waste
- RoHS-compliant material ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Rivet Nut with Small Countersunk Head Zinc-Plated Steel M3 25 PCS is available for immediate purchase, ideal for metal fabrication and assembly applications.
