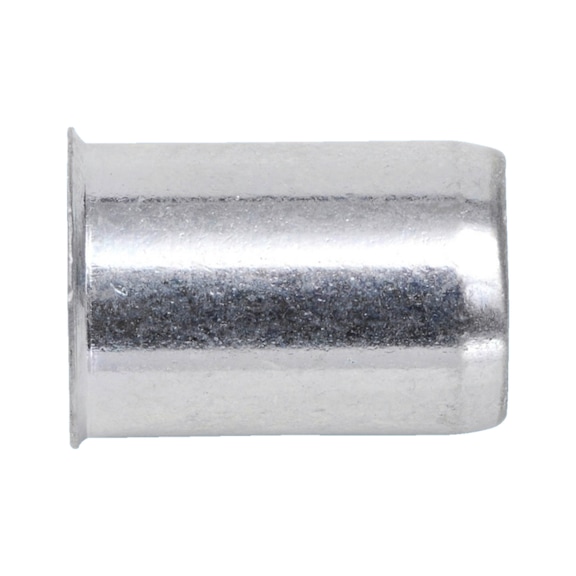

Rivet Nut with Small Countersunk Head | Zinc-Plated Steel | M4 Thread | 6800 N Load Capacity | @Pack of 25 | by Wurth
Rivet nut with small countersunk head designed for secure fastening in metal fabrication. Made from zinc-plated steel, it features an M4 thread and a tensile fracture load of 6800 N, making it ideal for automotive, construction, and industrial assembly. With easy one-side installation and no need for countersinking, this product ensures high installation quality and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Rivet Nut with Small Countersunk Head | Zinc-Plated Steel | M4 Thread | 6800 N Load Capacity | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 91740
Alternatively Known As: Rivet Nut, Rivnut, Blind Nut, Threaded Insert, Rivet Threaded Insert
Technical Specifications
- Thread type x nominal diameter (D): M4
- Head diameter (d1): 7.1 mm
- Outer diameter (d2): 6.3 mm
- Length (l1): 10.4 mm
- Head height (k1): 0.45 mm
- Min./max. grip range (s1): 0.3-2.0 mm
- Material: Steel
- Surface: Zinc plated
- RoHS-compliant: Yes
- Tensile fracture load: 6800 N
- Shear-fracture load: 2200 N
- Max. tightening torque: 3 Nm
- Drill hole diameter: 6.4 mm
- Head type: Small countersunk head
- Dimensions (H x L x W): 10.4mm x 7.1mm x 7.1mm
- Weight: 0.02 kg
Key Features
- Can be used as riveted and screwed connections providing secure fastening
- Installation from one side, suitable for closed profiles
- Simple, fast, and mostly automatic installation
- No countersinking of drill holes necessary
- Consistently high installation quality
- Anti-rotation connection with load-bearing thread
- Improved efficiency due to faster operation and secure connections
Professional Installation Requirements
- Installation should be performed by trained personnel using appropriate rivet nut installation tools to ensure secure and consistent fastening.
Applications
- Suitable for riveted and screwed connections in metal fabrication
- Installation in closed profiles from one side
- Mounting additional components using conventional screws
- Ideal for automotive, construction, and industrial assembly
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life
- RoHS-compliant material reduces hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Rivet Nut with Small Countersunk Head Zinc-Plated Steel M4 25 PCS is available for immediate purchase, ideal for industrial and construction fastening applications.
