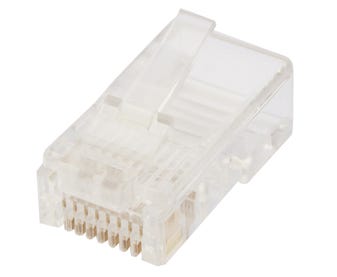

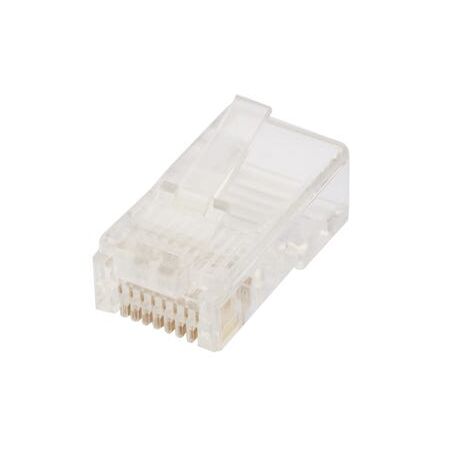

RJ45 8P8C Plug C5E Flat Stranded UTP | 50um Gold Plated Pins | UL94-V2 Housing | 250MHz Cross Talk by Cabac
RJ45 8P8C plugs in a 100 pack, designed for flat stranded UTP cables—ideal for networking and data transmission. Built for reliable connectivity, these plugs ensure optimal performance for home and office setups.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RJ45 8P8C Plug C5E Flat Stranded UTP | 100 Pack | Reliable Connectivity by Unbranded
Brand: Cabac
SKU: 0688FST-C
Alternatively Known As: RJ45 CAT5e Plug, 8P8C Modular Plug, Ethernet Connector Plug, CAT5e UTP Plug
Technical Specifications
- Pin plating: 50um gold plated pins
- Housing: UL94-V2 Polycarbonate flame retardant
- Cross talk capability: 250MHz
- Standards: Exceeds TIA/EIA-568 and NEXT requirements for CAT5
- Approvals: ACA approved, UL listed under UL 136825
- Max conductor O.D range: 1.0mm
- Dimensions (H x L x W): 10mm x 25mm x 15mm
- Weight: 0.1 kg
Key Features
- 50um gold plated pins for high quality connection
- UL94-V2 Polycarbonate flame retardant housing
- Cross talk capability up to 250MHz
- Exceeds TIA/EIA-568 and NEXT requirements for CAT5
- ACA approved and UL listed under UL 136825
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure proper termination and network performance.
Applications
- Data communication networks
- Ethernet cabling for CAT5e applications
- Fibre networking and data communications
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable materials reduce replacement frequency and electronic waste
- Flame retardant housing enhances safety and reduces fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty policy for details.
Available Now
The Cabac RJ45 8P8C C5E Flat Stranded UTP Plug 100 Pack is available now for immediate purchase. Ideal for data communication and networking installations.
