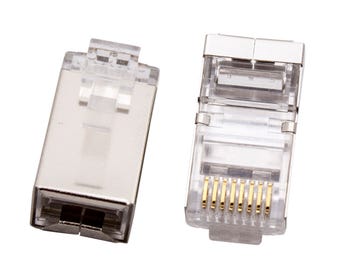

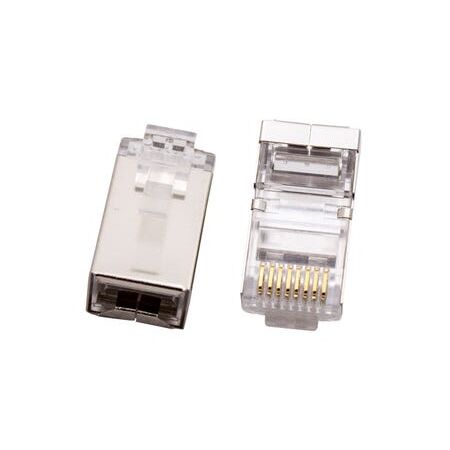

RJ45 8P8C Plug C5E Solid STP | 50um Gold Plated Pins | UL94-V2 Housing | 250MHz Capability | 10 Pack by Cabac
RJ45 8P8C plug with solid STP design—ideal for networking and data transmission. Built for reliable connections, this 10 pack ensures high performance and durability for your cabling needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RJ45 8P8C Plug C5E Solid STP | 10 Pack | High Performance by Unbranded
Brand: Cabac
SKU: 0688RSSL-X
Alternatively Known As: RJ45 Modular Plug, CAT5e RJ45 Connector, Shielded RJ45 Plug, 8P8C RJ45 Connector
Technical Specifications
- Connector Type: RJ45 8P8C
- Pin Plating: 50um gold plated pins
- Housing Material: UL94-V2 Polycarbonate flame retardant
- Frequency Capability: Cross talk capability 250MHz
- Standards Compliance: Exceeds TIA/EIA-568 and NEXT requirements for CAT5
- UL Listed: UL 136825
- Conductor O.D Range: Max 1.0mm
- Dimensions (H x L x W): 10mm x 25mm x 15mm
- Weight: 0.05 kg
Key Features
- ACA approved
- 50um gold plated pins for enhanced conductivity
- UL94-V2 Polycarbonate flame retardant housing
- Cross talk capability up to 250MHz
- Exceeds TIA/EIA-568 requirements for CAT5
- Exceeds NEXT requirements for CAT5
- UL listed under UL 136825
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure proper termination and network performance.
Applications
- Data communication networks
- Ethernet cabling for CAT5e applications
- Networking installations requiring shielded RJ45 connectors
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable materials reduce replacement frequency and electronic waste
- Flame retardant housing enhances safety and reduces fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty policy for details.
Available Now
The Cabac Plug RJ45 8P8C C5E Solid STP 10PK is available now for immediate purchase. Ideal for professional networking and data communication installations.
