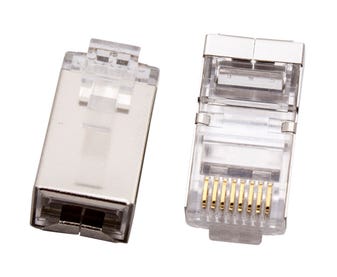

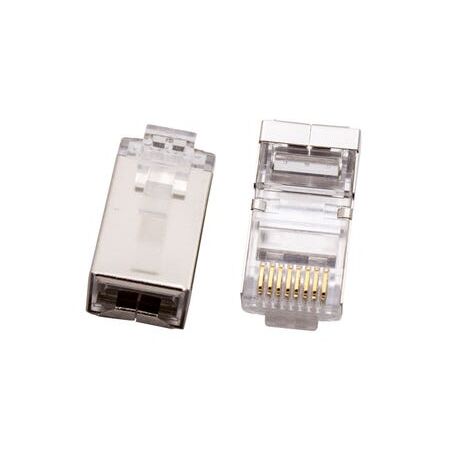

RJ45 8P8C Plug C5E STP | 50um Gold Plated Pins | Durable Polycarbonate Housing | 10 Pack by Cabac
RJ45 8P8C plugs in a 10 pack, designed for C5E STP cables—ideal for networking and data transmission. Built for durability and reliability, ensuring a stable connection for your devices.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RJ45 8P8C Plug C5E STP | 10 Pack | Durable & Reliable by Unbranded
Brand: Cabac
SKU: 0688RSST-X
Alternatively Known As: RJ45 Modular Plug, CAT5e RJ45 Connector, 8P8C RJ45 Plug, Ethernet RJ45 Connector
Technical Specifications
- Connector Type: RJ45 8P8C
- Pin Plating: 50um gold plated pins
- Housing Material: UL94-V2 Polycarbonate flame retardant
- Cross Talk Capability: 250MHz
- Standards Compliance: Exceeds TIA/EIA-568 and NEXT requirements for CAT5
- UL Listed: UL 136825
- Conductor O.D Range: Max 1.0mm
- Dimensions (H x L x W): 10mm x 25mm x 15mm
- Weight: 0.05 kg
Key Features
- ACA approved
- 50um gold plated pins for enhanced conductivity
- UL94-V2 Polycarbonate flame retardant housing
- Cross talk capability up to 250MHz
- Exceeds TIA/EIA-568 requirements for CAT5
- Exceeds NEXT requirements for CAT5
- UL listed under UL 136825
Professional Installation Requirements
- Installation by a qualified technician or network professional is recommended to ensure proper termination and performance.
Applications
- Data communication networks
- Ethernet cabling for CAT5e applications
- Copper cable connectivity in commercial and residential settings
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable materials reduce replacement frequency and electronic waste
- Flame retardant housing enhances safety and reduces fire risk
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac for specific terms.
Available Now
The Cabac Plug RJ45 8P8C C5E Strand STP 10PK is available now for immediate purchase. Ideal for data communication and networking applications requiring reliable CAT5e connectivity.
