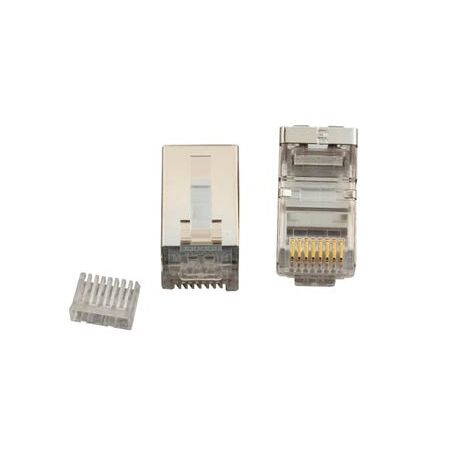

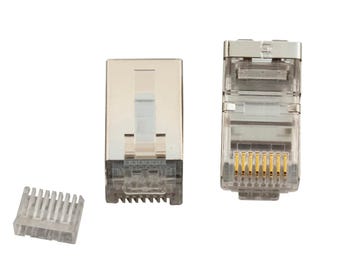

RJ45 Cat6 Plug 8P8C STP | 50um Gold Plating | Low Contact Resistance | Durable Design by Cabac
RJ45 Cat6 plug with 8P8C configuration, designed for shielded twisted pair (STP) connections—ideal for networking and data transmission. Built for reliability, with a durable design and easy installation for home or office use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RJ45 Cat6 Plug 8P8C STP | 10 Pack | Durable Design & Easy Installation by Matchmaster
Brand: Cabac
SKU: C68P8CS2P-X
Alternatively Known As: RJ45 Cat6 Plug, Shielded RJ45 Connector, Cat6 Modular Plug, 8P8C RJ45 Connector, Network Cable Plug
Technical Specifications
- Pin plating: 50um gold
- Contact resistance: Low
- Housing material: Flame retardant UL94-V2 polycarbonate
- Standards compliance: Exceeds TIA/EIA 568.2-1 CAT6
- Powersum NEXT: Exceeds requirements
- UL Listing: UL136825
- Conductor O.D. range: 1.09mm to 1.15mm
- Pack quantity: 10 pieces
- Dimensions (H x L x W): 10mm x 25mm x 15mm
- Weight: 0.01 kg
Key Features
- High quality pins with 50um gold plating
- Low contact resistance
- Housing made from flame retardant UL94-V2 polycarbonate
- Exceeds TIA/EIA 568.2-1 CAT6 standards
- Exceeds Powersum NEXT requirements
- Listed under UL136825
- Available in shielded and unshielded versions
- Two piece plug designed for easy assembly
- Component level compliant if terminated correctly
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure proper termination and compliance with standards.
Applications
- Telecom Equipment: Network cabling and data communication installations
- Fibre Networking & Data Comms: Suitable for Cat6 cable terminations in structured cabling systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Flame retardant housing enhances safety and reduces fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty policy for details.
Available Now
The Cabac Plug RJ45 8P8C Cat6 2 Piece STP 10PK is available now for immediate purchase. Ideal for professional network cabling and data communication installations.
