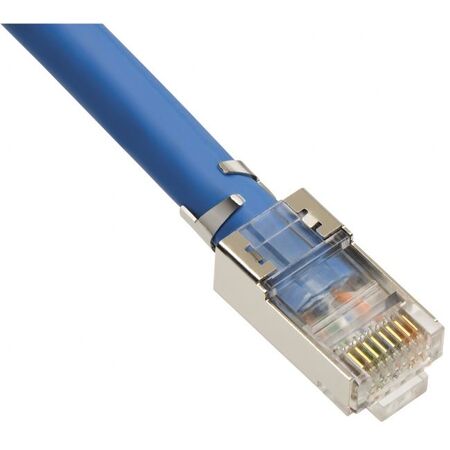

RJ45 CAT6A 10Gig Shielded Connector | Solid 3-Prong | 50µ Gold Contacts | 10pc by Certech
RJ45 CAT6A connector with solid 3-prong design and 50µ gold contacts—ideal for high-speed data transmission in home and office networks. Built for both shielded and unshielded cabling, ensuring optimal performance and compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Platinum Tools RJ45 CAT6A 10Gig Shielded Connector with Liner, Solid 3-Prong, 10pc Clamshell
Brand: Certech
SKU: 106193C
Alternatively Known As: RJ45 CAT6A Connector, Shielded RJ45 Plug, 10Gig Ethernet Connector
Technical Specifications
- Required Tool: 12516C
- Max cable OD: 8.5mm/0.335"
- Max conductor OD: 1.35mm/0.053"
- Individual conductor OD range: 0.042” - 0.053” (1.07mm-1.35mm)
- Wire gauge range (AWG) 24—22
- 50µ Gold Contacts
- Dimensions (H x L x W): 10mm x 30mm x 20mm
- Weight: 0.1 kg
Key Features
- Max cable OD: 8.5mm/0.335"
- Max conductor OD: 1.35mm/0.053"
- Individual conductor OD range: 0.042” - 0.053” (1.07mm-1.35mm)
- Wire gauge range (AWG) 24—22
- Designed for both shielded and unshielded cabling
- 50µ Gold Contacts
- UL and RoHS compliant
Professional Installation Requirements
- Professional installation is recommended for optimal performance and compliance.
Applications
- Networking: Ideal for high-speed data transmission in home and office environments.
- Telecommunications: Suitable for audio and video streaming applications.
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- RoHS compliance ensures reduced environmental impact by limiting hazardous substances.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Platinum Tools RJ45 CAT6A 10Gig Shielded Connector with Liner is available now for immediate purchase. Ideal for networking and telecommunications applications.
