RJ45 Connector Cat5E | Unshielded | Shutter | Translucent by Clipsal
RJ45 connector with unshielded Cat5E and shutter—ideal for networking applications. Built for easy installation, with a translucent design for visibility of internal components.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

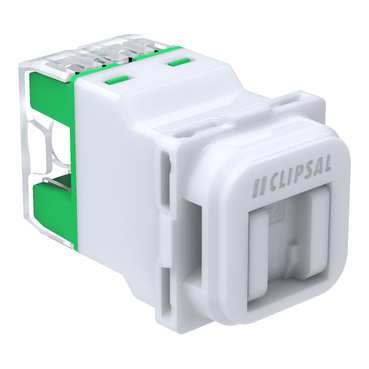

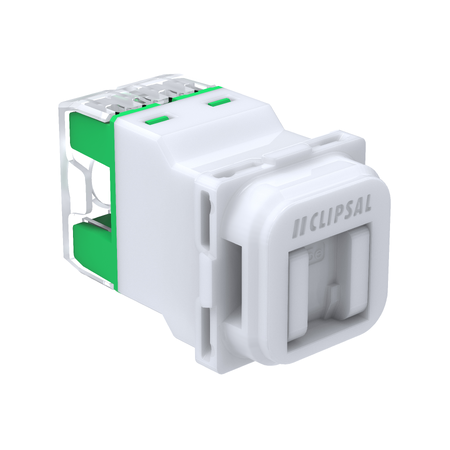

Product Name/Title: Clipsal Actassi, Actassi S-110 RJ45 Connector, 40M, Unshielded, Cat5E, Shutter, Bag x1 - Translucent
Brand: Clipsal
SKU: 40RJ45SMA5SHC-TN
Alternatively Known As: RJ45 Connector, Cat5e Connector, Network Connector
Technical Specifications
- Rated current: 1.5 A at 25 °C
- Permissible voltage: 1000 V AC/DC peak, between contacts
- Contact resistance: 20 mOhm
- Insulation resistance: > 500 MOhm at 100 V DC
- Mechanical durability: 750 cycles
- Pin number: 8 pins of copper alloy and gold plated
- Cable outer diameter: 0.9...1.4 mm
- Cable shielding type: UTP
- Transmission frequency: 1...100 MHz
- Type of footprint: S-110 40 mech
- Ambient air temperature for operation: -10...60 °C
- Ambient air temperature for storage: -40...70 °C
- Dimensions (H x L x W): 22mm x 36mm x 16mm
- Weight: 0.0088 kg
Key Features
- Two-piece design for easy installation.
- Compatible with RJ45 and RJ11 plugs.
- Translucent housing for visibility of internal components.
Professional Installation Requirements
- Professional installation is recommended for optimal performance.
Applications
- Networking: Suitable for various networking applications requiring RJ45 connectivity.
Standards & Compliance
- Complies with AS/NZS 3080:2003 for safety and performance standards.
Environmental Benefits
- UL listed for safety and performance standards.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Actassi S-110 RJ45 Connector is available now for immediate purchase. Ideal for networking applications.
