RJ45 Connector Cat 6A | Unshielded | Easy Installation | Translucent by Clipsal
RJ45 connector with unshielded Cat 6A design and easy two-piece installation—ideal for home and office networks. Built for high-speed data transmission, compatible with RJ45 and RJ11 plugs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

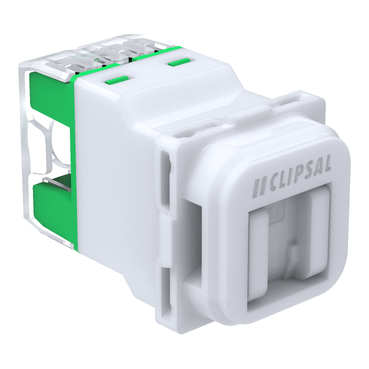

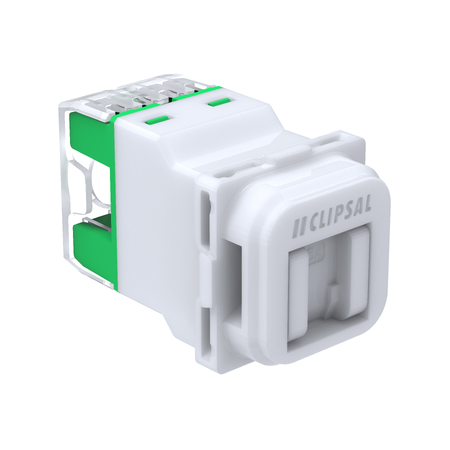

Product Name/Title: Clipsal Actassi, Actassi S-110 RJ45 Connector, 40M, Unshielded Cat 6,A Shutter, Bag x1 - Translucent
Brand: Clipsal
SKU: 40RJ45SMA6ASC-TN
Alternatively Known As: RJ45 Connector, Cat 6 Connector, Ethernet Connector
Technical Specifications
- Rated current: 1.5 A at 25 °C
- Permissible voltage: 1000 V AC/DC peak
- Contact resistance: 20 mOhm
- Insulation resistance: > 500 MOhm at 100 V DC
- Mechanical durability: 750 cycles
- Transmission frequency: 1...500 MHz
- Communication network category: 6A
- Communication port protocol: PoE+ (Power over Ethernet)
- Dimensions (H x L x W): 22mm x 36mm x 16mm
- Weight: 0.00939 kg
Key Features
- Unshielded Cat 6 design for high-speed data transmission.
- Compatible with RJ45 and RJ11 plugs.
- Two-piece design for easy installation.
Professional Installation Requirements
- Professional installation is recommended for optimal performance.
Applications
- Networking: Suitable for home and office network installations.
Standards & Compliance
- Complies with AS/NZS 3080:2003 for network performance.
Environmental Benefits
- UL listed for safety and performance standards.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Actassi S-110 RJ45 Connector is available now for immediate purchase. Ideal for networking applications.
