RJ45 Connector Cat6A | Unshielded | Extra Vivid White by Clipsal
RJ45 connector with Cat6A compatibility and unshielded design—ideal for residential and commercial networking. Built for reliable connections, with extra vivid white finish for a sleek look.
Sign in
Please login to continue to your account.

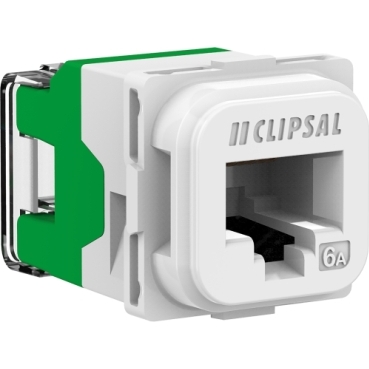

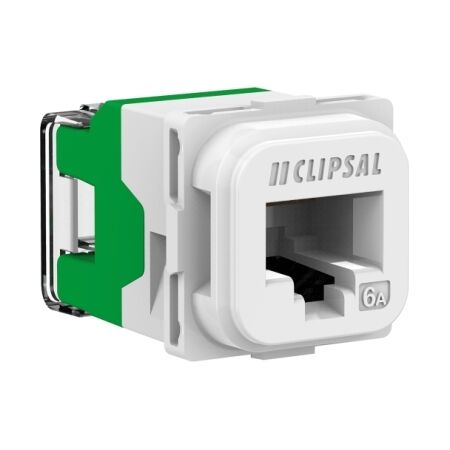

Product Name/Title: Clipsal Actassi, S-110 RJ45 Connector, 40M, Unshielded, Cat6A, Bag x 1 - Extra Vivid White
Brand: Clipsal
SKU: 40RJ45SMA6AC-XW
Alternatively Known As: RJ45 Connector, Actassi Connector, Network Connector
- Connector type: RJ45
- Contact resistance: 20 mOhm
- Insulation resistance: > 500 MOhm at 100 V DC
- AWG gauge: AWG 24 to AWG 23
- Transmission frequency: 1 to 500 MHz
- Communication network category: 6A
- Communication network type: 10GBASE-T
- Power over Ethernet (PoE) compatibility: PoE+, PoE 15W, PoE+ 30W, 4PPoE 100W
- Cable outer diameter: 0.9 to 1.4 mm
- Pin number: 8 pins of copper alloy and gold plated
- Flame retardance: UL94-V0
- Dimensions (H x L x W): 22mm x 36mm x 16mm
- Weight: 0.008 kg
- Unshielded design for standard networking applications.
- Compatible with RJ45 plugs.
- Mechanical durability of 750 cycles.
- Professional installation is recommended for optimal performance.
- Networking: Suitable for residential and commercial network installations.
- Complies with AS/NZS 3080:2003 and other relevant standards.
- Compliant with RoHS directives and free of toxic heavy metals.
18 months warranty against manufacturing defects.
The Clipsal Actassi S-110 RJ45 Connector is available now for immediate purchase. Ideal for networking applications.
