RJ45 Connector S-110 | Unshielded Cat 6 | 40M | Green by Clipsal
RJ45 connector with unshielded Cat 6 compatibility and 40M range—ideal for residential and commercial networking. Built for reliable connections, with mechanical durability of 750 cycles.
Sign in
Please login to continue to your account.

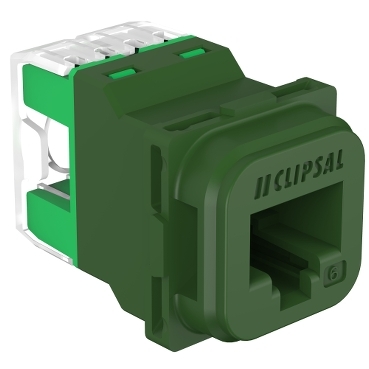

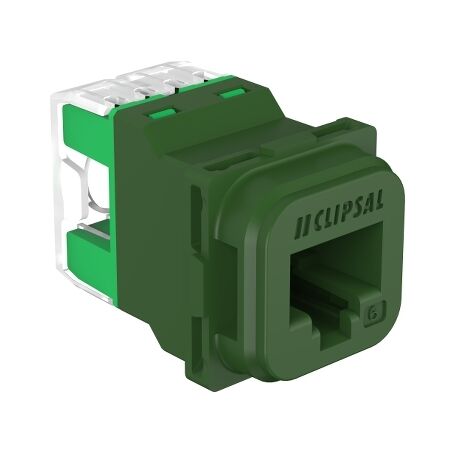

Product Name/Title: Clipsal Actassi, S-110 RJ45 Connector, 40M, Unshielded Cat 6, Bag x1 - Green
Brand: Clipsal
SKU: 40RJ45SMA6C-GR
Alternatively Known As: RJ45 Connector, Actassi Connector, Network Connector
- Connector type: RJ45
- Contact resistance: 20 mOhm
- Insulation resistance: > 500 MOhm at 100 V DC
- AWG gauge: AWG 24 to AWG 23
- Transmission frequency: 1 to 250 MHz
- Communication network category: 6
- Communication port protocol: PoE+ (Power over Ethernet)
- Pin number: 8 pins of copper alloy and gold plated
- Cable outer diameter: 0.9 to 1.4 mm
- Dimensions (H x L x W): 22mm x 36mm x 16mm
- Weight: 0.008 kg
- Unshielded design for standard networking applications.
- Compatible with RJ45 plugs.
- Mechanical durability of 750 cycles.
- Professional installation is recommended for optimal performance.
- Networking: Suitable for residential and commercial network installations.
- Complies with AS/NZS 3080:2003 for network cabling.
- Compliant with RoHS directives and free of toxic heavy metals.
18 months warranty against manufacturing defects.
The Clipsal Actassi S-110 RJ45 Connector is available now for immediate purchase. Ideal for networking applications.
