RJ45 Connector S-110 | Unshielded Cat 6 | Extra Vivid White by Clipsal
RJ45 connector with unshielded Cat 6 design and extra vivid white finish—ideal for residential and commercial network installations. Built for reliable data transmission, compatible with RJ45 plugs, and offers mechanical durability of 750 cycles.
Sign in
Please login to continue to your account.

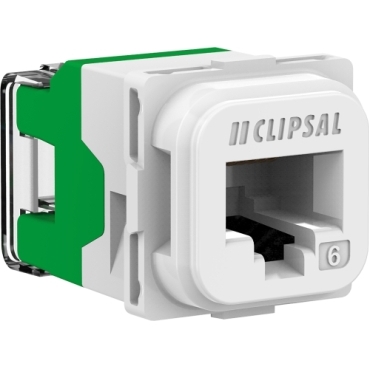

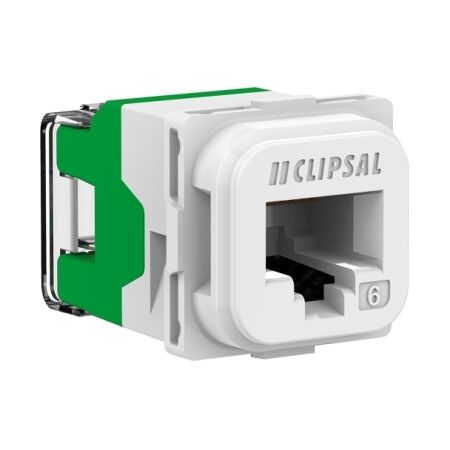

Product Name/Title: Clipsal Actassi, S-110 RJ45 Connector, 40M, Unshielded Cat 6, Bag x1 - Extra Vivid White
Brand: Clipsal
SKU: 40RJ45SMA6C-XW
Alternatively Known As: RJ45 Connector, Actassi Connector, Network Connector
- Connector type: RJ45
- Contact resistance: 20 mOhm
- Insulation resistance: > 500 MOhm at 100 V DC
- AWG gauge: AWG 24 to AWG 23
- Transmission frequency: 1 to 250 MHz
- Communication network category: 6
- Communication network type: 1000BASE-T
- Power over Ethernet (PoE) compatibility: PoE+, PoE 15W, PoE+ 30W, 4PPoE 100W
- Pin number: 8 pins of copper alloy and gold plated
- Cable outer diameter: 0.9 to 1.4 mm
- Climatic withstand: 40/070/21 (21 days)
- Flame retardance: UL94-V0
- Dimensions (H x L x W): 22mm x 36mm x 16mm
- Weight: 0.008 kg
- Unshielded design for reliable data transmission.
- Compatible with RJ45 plugs.
- Mechanical durability of 750 cycles.
- Professional installation is recommended for optimal performance.
- Networking: Suitable for residential and commercial network installations.
- Complies with AS/NZS 3080:2003 for network cabling.
- Compliant with RoHS directives and free of toxic heavy metals.
18 months warranty against manufacturing defects.
The Clipsal Actassi S-110 RJ45 Connector is available now for immediate purchase. Ideal for network connectivity solutions.
