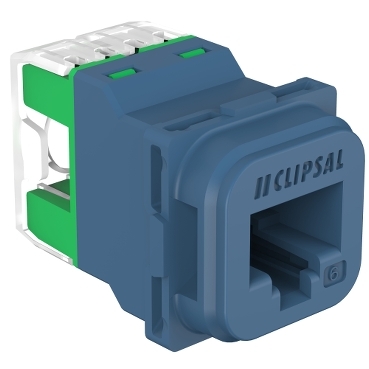

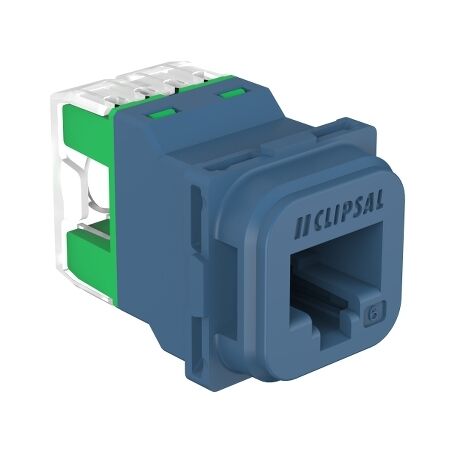

RJ45 Connector S-110 | Unshielded Cat 6 | 40M Blue by Clipsal
RJ45 connector with unshielded Cat 6 design and 40M range—ideal for residential and commercial networking. Built for compatibility with RJ45 plugs, offering mechanical durability of 750 cycles.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connector type: RJ45
- Contact resistance: 20 mOhm
- Insulation resistance: > 500 MOhm at 100 V DC
- AWG gauge: AWG 24 to AWG 23
- Transmission frequency: 1 to 250 MHz
- Communication network category: 6
- Communication network type: 1000BASE-T
- Power over Ethernet (PoE) support: PoE+, PoE 15W, PoE+ 30W, 4PPoE 100W
- Pin number: 8 pins of copper alloy and gold plated
- Cable outer diameter: 0.9 to 1.4 mm
- Climatic withstand: 40/070/21 (21 days)
- Flame retardance: UL94-V0
- Dimensions (H x L x W): 22mm x 36mm x 16mm
- Weight: 0.1 kg
Key Features
- Unshielded design for standard networking applications.
- Compatible with RJ45 plugs.
- Mechanical durability of 750 cycles.
Professional Installation Requirements
- Professional installation is recommended for optimal performance.
Applications
- Networking: Suitable for residential and commercial network installations.
Standards & Compliance
- Complies with AS/NZS 3080:2003 for network cabling.
Environmental Benefits
- Compliant with RoHS directives and free of toxic heavy metals.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Actassi S-110 RJ45 Connector is available now for immediate purchase. Ideal for networking applications.
