RJ45 Jack CAT5E UTP 30M | 1000V Rated | Blue by Clipsal
RJ45 jack with CAT5E UTP support and 1000V AC/DC peak rating—ideal for residential and commercial network installations. Built for reliable connectivity, with a two-piece design and blue finish.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

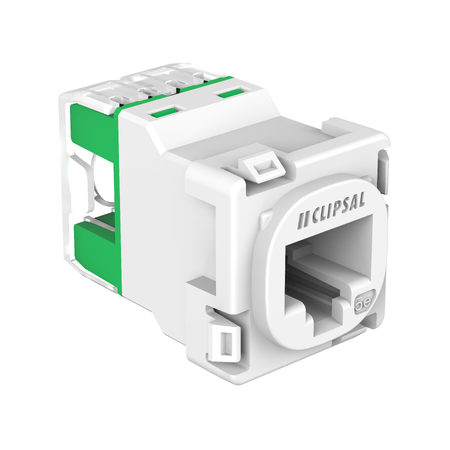

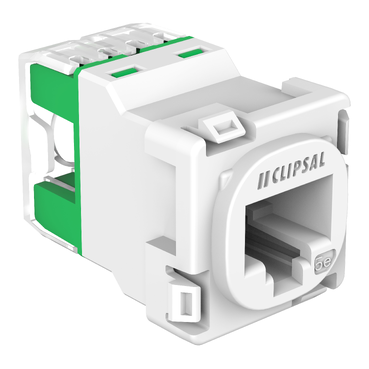

Product Name/Title: Clipsal Actassi, RJ45 Jack, CAT5E UTP 30M - Blue
Brand: Clipsal
SKU: 30RJ45SMA5C-BU
Alternatively Known As: RJ45 Connector, CAT5E Jack, Network Connector
Technical Specifications
- Rated current: 1.5 A at 25 °C
- Permissible voltage: 1000 V AC/DC peak
- Contact resistance: 20 mOhm
- Insulation resistance: >= 500 MOhm at 100 V DC
- AWG gauge: AWG 24 to AWG 23
- Mechanical durability: 750 cycles
- Pin number: 8 pins of copper alloy and gold plated
- Cable outer diameter: 0.9 to 1.4 mm
- Cable shielding type: UTP
- Transmission frequency: 1 to 100 MHz
- Type of footprint: S-110 30 mech
- Ambient air temperature for operation: -10 to 60 °C
- Ambient air temperature for storage: -40 to 70 °C
- Dimensions (H x L x W): 22mm x 36mm x 16mm
- Weight: 0.1 kg
Key Features
- RJ45 connector with a two-piece design.
- Supports CAT5E UTP communication network.
- Rated for 1000 V AC/DC peak between contacts.
Professional Installation Requirements
- Professional installation is recommended for optimal performance.
Applications
- Networking: Suitable for residential and commercial network installations.
Standards & Compliance
- Complies with AS/NZS 3080:2003 for network cabling.
Environmental Benefits
- UL listed for safety and performance standards.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Actassi RJ45 Jack CAT5E UTP 30M is available now for immediate purchase. Ideal for networking applications.
