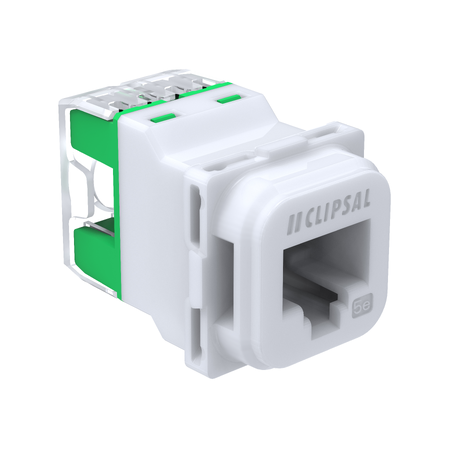

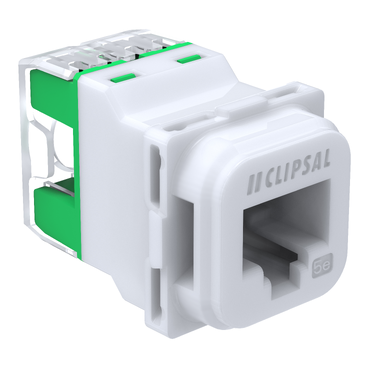

RJ45 Jack CAT5E UTP 40M | Translucent | Easy Installation by Clipsal
RJ45 jack with CAT5E UTP 40M compatibility and easy two-piece installation—ideal for residential and commercial networking. Built for reliable connections, with translucent design for modern setups.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal Actassi, RJ45 Jack, CAT5E UTP 40M - Translucent
Brand: Clipsal
SKU: 40RJ45SMA5C-TN
Alternatively Known As: RJ45 Connector, CAT5E Jack, Network Jack
Technical Specifications
- Rated current: 1.5 A at 25 °C
- Permissible voltage: 1000 V AC/DC peak
- Contact resistance: 20 mOhm
- Insulation resistance: > 500 MOhm at 100 V DC
- AWG gauge: AWG 24 to AWG 23
- Mechanical durability: 750 cycles
- Pin number: 8 pins of copper alloy and gold plated
- Cable outer diameter: 0.9 to 1.4 mm
- Cable shielding type: UTP
- Transmission frequency: 1 to 100 MHz
- Type of footprint: S-110 40 mech
- Ambient air temperature for operation: -10 to 60 °C
- Ambient air temperature for storage: -40 to 70 °C
- Dimensions (H x L x W): 22mm x 36mm x 16mm
- Weight: 0.0088 kg
Key Features
- RJ45 connector compatible with RJ11 and RJ45 plugs.
- Two-piece design for easy installation.
- Supports communication network category 5e.
Professional Installation Requirements
- Professional installation is recommended for optimal performance.
Applications
- Networking: Suitable for residential and commercial network installations.
Standards & Compliance
- Complies with AS/NZS 3080:2003 for network cabling.
Environmental Benefits
- UL listed for safety and performance standards.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Actassi RJ45 Jack CAT5E UTP 40M is available now for immediate purchase. Ideal for networking applications.
