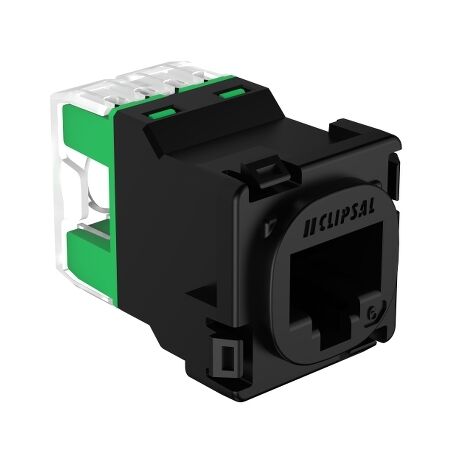

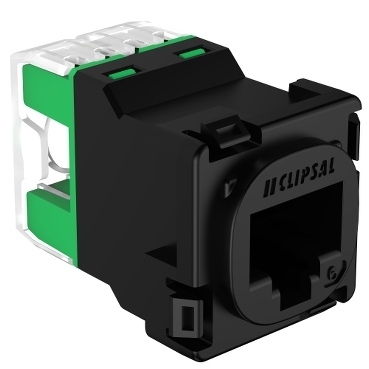

RJ45 Jack CAT6 UTP 30M | PoE & PoE+ Support | Black by Clipsal
RJ45 jack with CAT6 UTP 30M, supporting PoE and PoE+—ideal for residential and commercial networking. Built for durability with 750 mechanical cycles and compatibility with RJ11 and RJ45 plugs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated current: 1.5 A at 25 °C
- Permissible voltage: 1000 V AC/DC peak
- Contact resistance: 20 mOhm
- Insulation resistance: >= 500 MOhm at 100 V DC
- AWG gauge: AWG 24 to AWG 23
- Transmission frequency: 1 to 250 MHz
- Communication network category: 6
- Communication network type: 1000BASE-T
- Dimensions (H x L x W): 22mm x 36mm x 16mm
- Weight: 0.1 kg
Key Features
- RJ45 connector compatible with RJ11 and RJ45 plugs.
- Supports Power over Ethernet (PoE) and PoE+ standards.
- Mechanical durability of 750 cycles.
Professional Installation Requirements
- Professional installation is recommended for optimal performance.
Applications
- Networking: Suitable for residential and commercial network installations.
Standards & Compliance
- Complies with AS/NZS 3080:2003 for network cabling.
Environmental Benefits
- UL listed for safety and performance standards.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Actassi RJ45 Jack CAT6 UTP 30M is available now for immediate purchase. Ideal for networking applications.
