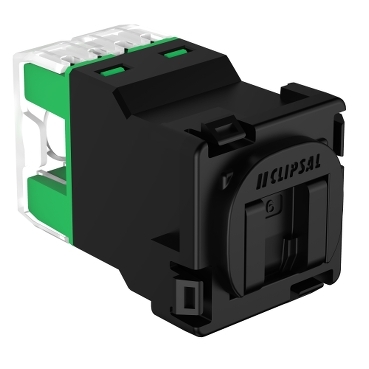

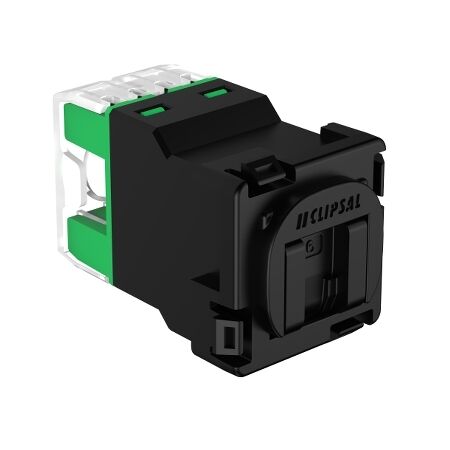

RJ45 Jack CAT6 UTP 30M Shutter | PoE Support | Black by Clipsal

BRAND: Clipsal
SKU: 30RJ45SMA6SHC-BK
$11.20 List price: $14.30
+
RJ45 jack with CAT6 UTP 30M shutter and PoE support—ideal for homes and commercial spaces. Built for seamless network connectivity, with easy installation and compatibility with RJ11 and RJ45 plugs.

Product Name/Title: Clipsal Actassi, RJ45 Jack, CAT6 UTP 30M Shutter - Black

Brand: Clipsal

SKU: 30RJ45SMA6SHC-BK

Alternatively Known As: RJ45 Connector, CAT6 Jack, Ethernet Jack

Technical Specifications
  • Rated current: 1.5 A at 25 °C
  • Permissible voltage: 1000 V AC/DC peak
  • Contact resistance: 20 mOhm
  • Insulation resistance: >= 500 MOhm at 100 V DC
  • Mechanical durability: 750 cycles
  • Transmission frequency: 1...250 MHz
  • Communication network category: 6
  • Communication port protocol: PoE+ 30W, PoE 15W
  • Dimensions (H x L x W): 22mm x 36mm x 16mm
  • Weight: 0.01 kg
Key Features
  • Two-piece design for easy installation.
  • Compatible with RJ11 and RJ45 plugs.
  • Supports Power over Ethernet (PoE) up to 100W.
Professional Installation Requirements
  • Professional installation is recommended for optimal performance.
Applications
  • Residential: Homes, apartments, offices
  • Commercial: Retail, hospitality, workspaces
  • General: Any location requiring network connectivity
Standards & Compliance
  • Complies with AS/NZS 3080:2003 for network cabling.
Environmental Benefits
  • UL listed for safety and performance standards.
Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal Actassi RJ45 Jack CAT6 UTP 30M Shutter is available now for immediate purchase. Ideal for enhancing network connectivity in various environments.

30RJ45SMA6SHC-BK (30RJ45SMA6SHC-BK, 233 Kb) [Download]
