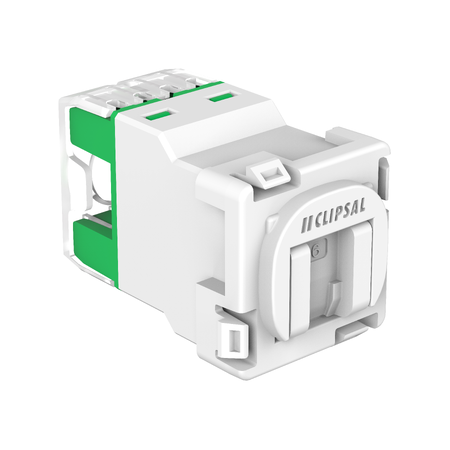

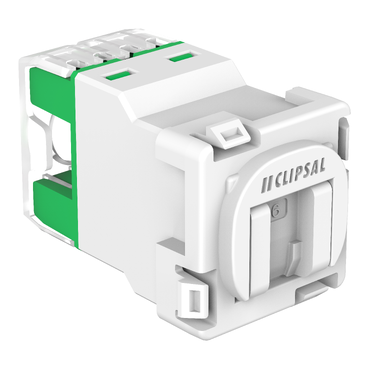

RJ45 Jack CAT6 UTP 30M Shutter | PoE Support | Easy Install | White by Clipsal
RJ45 jack with CAT6 UTP 30M shutter, supporting Power over Ethernet up to 100W—ideal for residential and commercial networking. Built for easy installation, compatible with RJ11 and RJ45 plugs.
Sign in
Please login to continue to your account.
Product Name/Title: Clipsal Actassi, RJ45 Jack, CAT6 UTP 30M Shutter - White Electric
Brand: Clipsal
SKU: 30RJ45SMA6SHC-WE
Alternatively Known As: RJ45 Connector, CAT6 Jack, Ethernet Jack
- Rated current: 1.5 A at 25 °C
- Permissible voltage: 1000 V AC/DC peak
- Contact resistance: 20 mOhm
- Insulation resistance: >= 500 MOhm at 100 V DC
- Mechanical durability: 750 cycles
- Transmission frequency: 1...250 MHz
- Communication network category: 6
- Cable shielding type: UTP
- Dimensions (H x L x W): 22mm x 36mm x 16mm
- Weight: 0.01 kg
- Two-piece design for easy installation.
- Compatible with RJ11 and RJ45 plugs.
- Supports Power over Ethernet (PoE) up to 100W.
- Professional installation is recommended for optimal performance.
- Networking: Suitable for residential and commercial network installations.
- Complies with AS/NZS 3080:2003 for network cabling.
- UL listed for safety and performance standards.
18 months warranty against manufacturing defects.
The Clipsal Actassi RJ45 Jack CAT6 UTP 30M Shutter is available now for immediate purchase. Ideal for networking applications.
