RJ45 Jack CAT6 UTP 40M Shutter | Translucent | PoE Support by Clipsal
RJ45 jack with CAT6 UTP and 40M shutter—ideal for residential and commercial networking. Built for high-speed data transfer, with PoE support up to 100W and durable translucent housing.
Sign in
Please login to continue to your account.

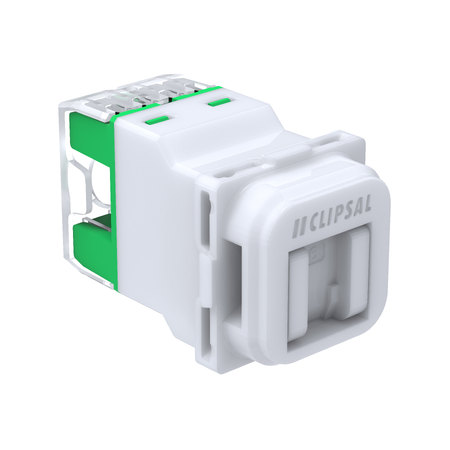

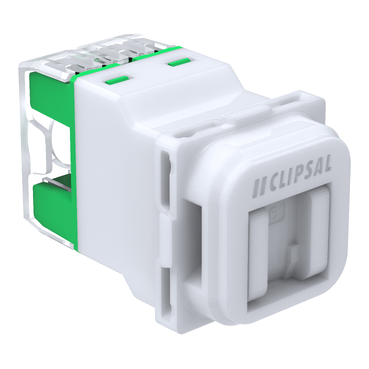

Product Name/Title: Clipsal Actassi, RJ45 Jack, CAT6 UTP 40M Shutter - Translucent
Brand: Clipsal
SKU: 40RJ45SMA6SHC-TN
Alternatively Known As: RJ45 Connector, CAT6 Jack, Ethernet Jack
- Rated current: 1.5 A at 25 °C
- Permissible voltage: 1000 V AC/DC peak
- Contact resistance: 20 mOhm
- Insulation resistance: > 500 MOhm at 100 V DC
- Mechanical durability: 750 cycles
- Transmission frequency: 1...250 MHz
- Communication network category: 6
- Communication port protocol: PoE+ 30W, PoE 15W, 4PPoE 100W
- Dimensions (H x L x W): 22mm x 36mm x 16mm
- Weight: 0.01 kg
- RJ45 connector compatible with RJ11 and RJ45 plugs.
- Translucent housing made from durable ABS and PC materials.
- Supports Power over Ethernet (PoE) up to 100W.
- Professional installation is recommended for optimal performance.
- Networking: Suitable for residential and commercial network installations.
- Complies with AS/NZS 3080:2003 for network cabling.
- UL listed for safety and performance standards.
18 months warranty against manufacturing defects.
The Clipsal Actassi RJ45 Jack CAT6 UTP 40M Shutter is available now for immediate purchase. Ideal for networking applications.
