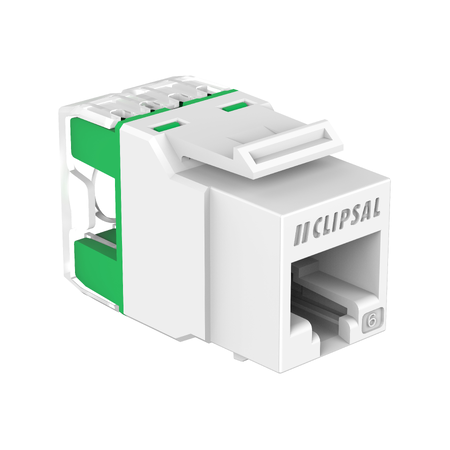

RJ45 Jack Cat6 UTP Keystone PoE Support 20 mOhm White Clipsal
Clipsal Jack UTP Keystone PoE Support mOhm White features 1.5A at 25 °C, 1000V AC DC peak and 20 mOhm. Compatible with RJ45 and RJ11 plugs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated current: 1.5 A at 25 °C
- Permissible voltage: 1000 V AC/DC peak
- Contact resistance: 20 mOhm
- Insulation resistance: > 500 MOhm at 100 V DC
- Mechanical durability: 750 cycles
- Transmission frequency: 1...250 MHz
- Flame retardance: UL94-V0 conforming to UL listed
- Dimensions (H x L x W): 22mm x 36mm x 16mm
- Weight: 0.1 kg
Key Features
- Two-piece design for easy installation.
- Compatible with RJ45 and RJ11 plugs.
- Supports Power over Ethernet (PoE) up to 100W.
Professional Installation Requirements
- Professional installation is recommended for optimal performance.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- General: Any indoor location requiring network connectivity
Standards & Compliance
- Complies with AS/NZS 3080:2003 for safety and performance standards.
Environmental Benefits
- UL listed for safety and performance standards.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Actassi RJ45 Jack CAT6 UTP Keystone is available now for immediate purchase. Ideal for residential and commercial spaces requiring reliable network connectivity.
