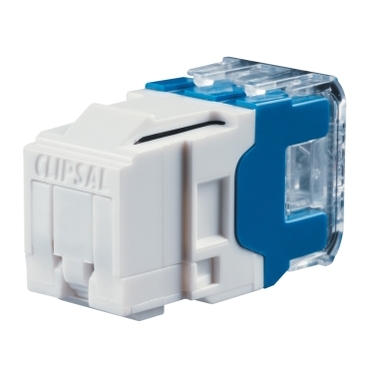

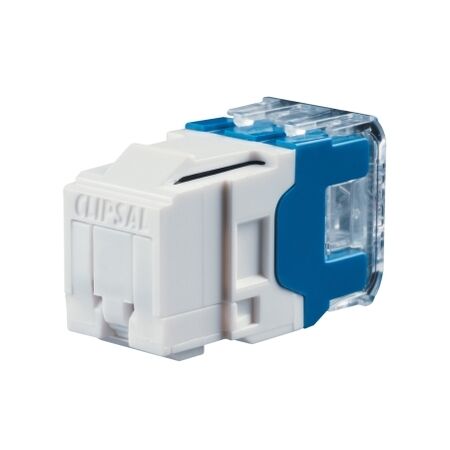

RJ45 Jack Cat6 UTP Keystone Shuttered White | Toolless IDC | Up to 250 MHz Performance | by Clipsal
The RJ45 Jack Cat6 UTP Keystone Shuttered White is designed for high-speed data transmission, featuring a toolless IDC termination for quick and reliable connections. Ideal for both commercial and residential structured cabling, this keystone jack ensures compatibility with Clipsal Actassi panels and offers dust protection with its shuttered design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RJ45 Jack Cat6 UTP Keystone Shuttered White | Toolless IDC | Up to 250 MHz Performance | by Clipsal
Brand: Clipsal
SKU: CLIRJ45SMA6SHCWE
Alternatively Known As: Cat6 Keystone Jack, RJ45 Cat6 Socket, Clipsal Actassi Keystone, Cat6 Data Jack, RJ45 Modular Jack
Technical Specifications
- Category: Cat6
- Type: RJ45 Keystone Jack
- Wiring: Unshielded Twisted Pair (UTP)
- Termination: Toolless IDC
- Housing: Polycarbonate, white
- Shuttered: Yes
- Compatibility: Clipsal Actassi and standard keystone panels
- Performance: Up to 250 MHz
- Contact Material: Phosphor bronze with gold plating
- Dimensions (H x L x W): 22mm x 35mm x 16mm
- Weight: 0.1 kg
Key Features
- Category 6 performance for high-speed data transmission
- Unshielded Twisted Pair (UTP) design
- Keystone format for easy installation in patch panels and wall plates
- Shuttered for dust protection and enhanced safety
- Compatible with Clipsal Actassi range
- Toolless termination for quick and reliable connections
Professional Installation Requirements
- Installation by a qualified data cabling technician is recommended to ensure compliance with network standards and optimal performance.
Applications
- Commercial and residential structured cabling
- Data and voice networking
- Patch panels and wall plates
- Offices, schools, and data centers
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Supports efficient network infrastructure, reducing the need for frequent replacements.
- RoHS compliant, minimizing hazardous substances.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Actassi RJ45 Jack Cat6 UTP Keystone Shuttered White is available for immediate purchase. Ideal for structured cabling in commercial and residential applications.
