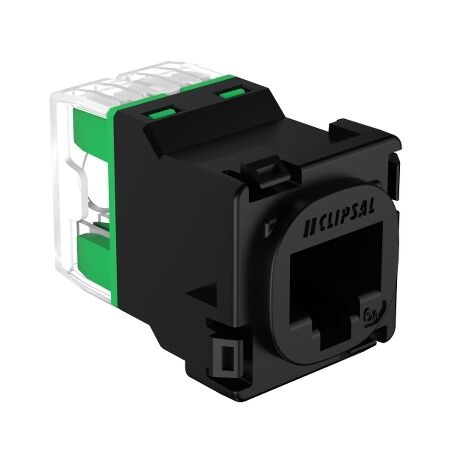

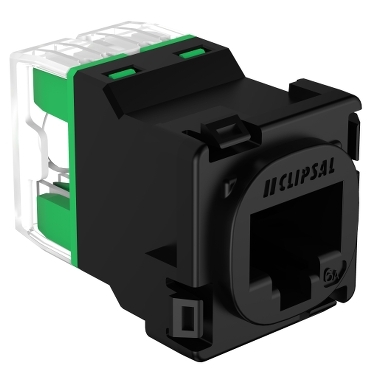

RJ45 Jack CAT6A UTP 30M | 10GBASE-T | PoE+ Compatible | Black by Clipsal

BRAND: Clipsal
SKU: 30RJ45SMA6AC-BK
$14.10 List price: $18.00
+
RJ45 jack with CAT6A UTP 30M and 10GBASE-T support—ideal for home and office networking. Built for high-speed data transfer, with PoE+ compatibility and a sleek black design.

Product Name/Title: Clipsal Actassi, RJ45 Jack, CAT6A UTP 30M - Black

Brand: Clipsal

SKU: 30RJ45SMA6AC-BK

Alternatively Known As: RJ45 Connector, CAT6A Jack, Ethernet Jack

Technical Specifications
  • Rated current: 1.5 A at 25 °C
  • Permissible voltage: 1000 V AC/DC peak
  • Contact resistance: 20 mOhm
  • Insulation resistance: >= 500 MOhm at 100 V DC
  • Mechanical durability: 750 cycles
  • Transmission frequency: 1...500 MHz
  • Flame retardance: UL94-V0 conforming to UL listed
  • Dimensions (H x L x W): 22mm x 36mm x 16mm
  • Weight: 0.01 kg
Key Features
  • RJ45 connector with a two-piece design.
  • Supports 10GBASE-T communication network type.
  • Compatible with PoE+ for power over Ethernet.
Professional Installation Requirements
  • Professional installation is recommended for optimal performance.
Applications
  • Residential: Home networking
  • Commercial: Office networking, data centers
Standards & Compliance
  • Complies with AS/NZS 3080:2003 for network cabling.
Environmental Benefits
  • UL listed for safety and performance standards.
Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal Actassi RJ45 Jack CAT6A UTP 30M is available now for immediate purchase. Ideal for residential and commercial networking applications.

30RJ45SMA6AC-BK (30RJ45SMA6AC-BK, 236 Kb) [Download]
