RJ45 Jack CAT6A UTP 30M | 10GBASE-T | White Electric by Clipsal
RJ45 jack with CAT6A UTP 30M and 10GBASE-T support—ideal for home and office networking. Built for high-speed data transfer, with gold-plated contacts for durability.
Sign in
Please login to continue to your account.

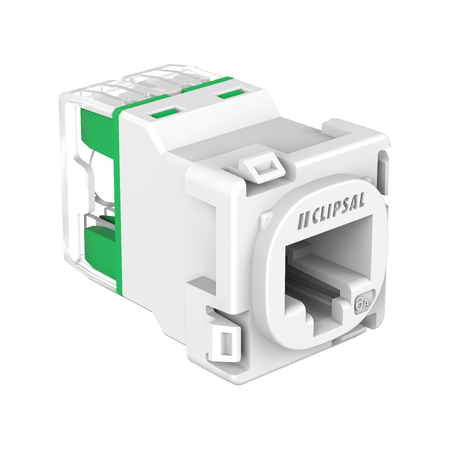

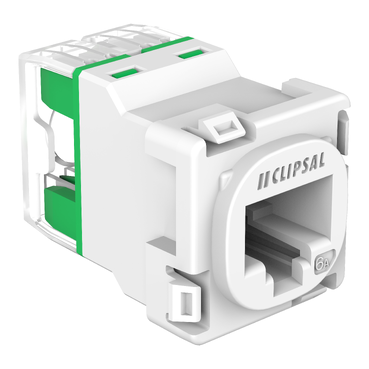

Product Name/Title: Clipsal Actassi, RJ45 Jack, CAT6A UTP 30M - White Electric
Brand: Clipsal
SKU: 30RJ45SMA6AC-WE
Alternatively Known As: RJ45 Connector, CAT6A Jack, Ethernet Jack
- Rated current: 1.5 A at 25 °C
- Insulation resistance: >= 500 MOhm at 100 V DC
- Cable shielding type: UTP
- Transmission frequency: 1...500 MHz
- Flame retardance: UL94-V0 conforming to UL listed
- Dimensions (H x L x W): 22mm x 36mm x 16mm
- Weight: 0.01 kg
- RJ45 connector with 8 pins of copper alloy and gold plating.
- Supports 10GBASE-T communication network type.
- Permissible voltage of 1000 V AC/DC peak between contacts.
- Mechanical durability of 750 cycles.
- Professional installation is recommended for optimal performance.
- Residential: Home networking
- Commercial: Office networking, data centers
- Complies with AS/NZS 3080:2003 for network cabling.
- UL listed for safety and performance standards.
18 months warranty against manufacturing defects.
The Clipsal Actassi RJ45 Jack CAT6A UTP 30M is available now for immediate purchase. Ideal for residential and commercial networking applications.
