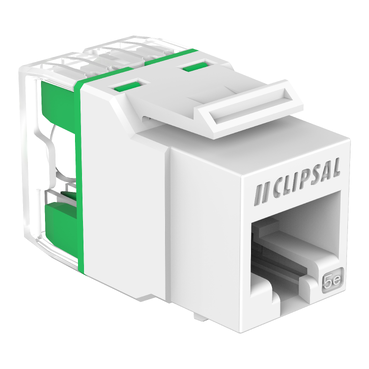

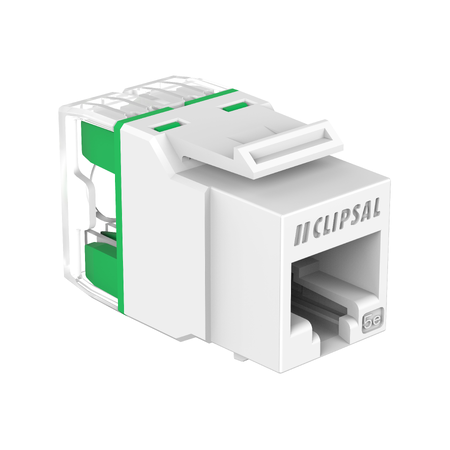

RJ45 Modular Jack CAT5E UTP | High-Speed Data Transmission | Toolless Installation | White | @Each of 1 | by GAF
The RJ45 Modular Jack CAT5E UTP is designed for high-speed data transmission, supporting up to 100 MHz and 10/100/1000 Mbps Ethernet. Ideal for residential and commercial applications, this durable jack features toolless or punchdown termination for easy installation. Its compatibility with standard keystone wall plates makes it perfect for structured cabling in homes, offices, and data centers.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RJ45 Modular Jack CAT5E UTP | High-Speed Data Transmission | Toolless Installation | White | @Each of 1 | by GAF
Brand: GAF
SKU: CLIRJ45SMA5CWE
Alternatively Known As: CAT5E Keystone Jack, RJ45 Network Jack, Ethernet Wall Jack, CAT5E Modular Jack, RJ45 Socket
Technical Specifications
- Category: CAT5E
- Type: Unshielded Twisted Pair (UTP)
- Connector: RJ45 8P8C
- Termination: Punchdown or toolless
- Housing Material: High-impact plastic
- Contact Material: Gold-plated phosphor bronze
- Color: White
- Compatibility: Fits standard keystone wall plates and patch panels
- Performance: Up to 100 MHz, supports 10/100/1000 Mbps Ethernet
- Dimensions (H x L x W): 21mm x 35mm x 16mm
- Weight: 0.1 kg
Key Features
- Category 5E (CAT5E) performance for high-speed data transmission
- Unshielded Twisted Pair (UTP) design for standard Ethernet applications
- Modular jack suitable for keystone wall plates and patch panels
- Toolless or punchdown termination for easy installation
- Compatible with standard RJ45 connectors
- Durable construction with reliable gold-plated contacts
Professional Installation Requirements
- Installation by a qualified data cabling technician is recommended to ensure compliance with network standards and optimal performance.
Applications
- Residential: Home networking, smart home device connections
- Commercial: Office data cabling, structured cabling systems
- Industrial: Network patch panels, server rooms, data centers
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Supports efficient network infrastructure, reducing the need for multiple cable runs.
- Durable design minimizes electronic waste by extending product lifespan.
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The GAF RJ45 Modular Jack CAT5E UTP KST White is available for immediate purchase. Ideal for structured cabling in homes, offices, and data centers.
