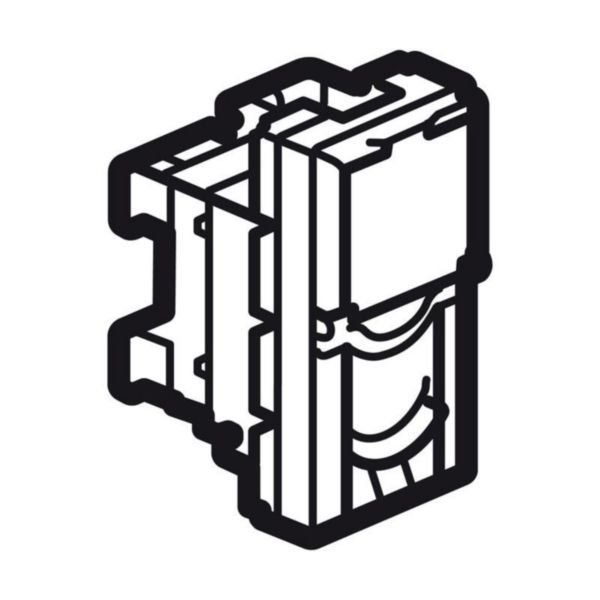

RJ45 Socket Category 6A UTP | IP20 Rated | Quick Toolless Connection | Flush-Mounted | @Each of 1 | by Legrand
The RJ45 Socket Category 6A UTP is designed for high-speed data transmission, making it ideal for digital home networks and commercial installations. With an IP20 rating for protection against solid objects and a quick toolless connection for easy installation, this socket supports various cable types and ensures compliance with industry standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RJ45 Socket Category 6A UTP | IP20 Rated | Quick Toolless Connection | Flush-Mounted | @Each of 1 | by Legrand
Brand: Legrand
SKU: 572349
Alternatively Known As: RJ45 Cat6A Socket, RJ45 Network Socket, Category 6A UTP RJ45 Outlet, Legrand RJ45 Connector
Technical Specifications
- Category: 6A (IEC)
- Type of connector: RJ45 8(8)
- Connection type: Insulation displacement connector
- Degree of protection: IP20
- Degree of impact strength: IK03
- Operating temperature: -10 to 60 °C
- Storage temperature: -10 to 70 °C
- Supports T568A and T568B wiring standards
- Supports single-core cables AWG 22 to AWG 26 and AWG 26 multicore cables
- Colour: White (RAL 9003)
- Mounting method: Flush-mounted with snap fastening
- With dust cover and label space
- Dimensions (H x L x W): 45mm x 34mm x 22.5mm
- Weight: 0.1 kg
Key Features
- Category 6A UTP RJ45 socket for high-speed data transmission
- Compatible with Legrand cabling system LCS³
- Quick toolless connection for easy installation
- Supports single-core cables AWG 22 to AWG 26 and AWG 26 multicore cables
- Flush-mounted installation with snap fastening
- Equipped with dust cover and label space
- Halogen free material
- IP20 rated for protection against solid objects
- Compliant with ISO/IEC 11801, EN 50173, and ANSI/TIA 568 standards
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure compliance with cabling standards and optimal network performance.
Applications
- Digital home networks
- Office and commercial network installations
- Data communication and structured cabling systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Halogen free materials reduce environmental impact
- Durable design reduces need for frequent replacements
Warranty Information
Legrand offers a standard warranty on Arteor products; please refer to the official Legrand warranty policy for details.
Available Now
The Legrand Arteor RJ45 Socket Category 6A UTP 1 Module White is available for immediate purchase, ideal for digital home networks and commercial structured cabling applications.
