RMS2000 Radar Sensor | ±4° Vertical & ±60° Horizontal Aperture | 5m to 150m Scanning Range | by SICK
The RMS2000 Radar Sensor is designed for effective traffic monitoring and wrong way driver detection, featuring a scanning range of 5m to 150m and an adaptable aperture angle of ±4° vertically and ±60° horizontally. With high detection accuracy and support for driving speeds from 10 km/h to 200 km/h, this sensor is perfect for enhancing traffic safety and efficiency in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: RMS2000
- Aperture angle: ±4° vertical, ±60° horizontal (adaptable)
- Scanning range: 5 m to 150 m
- Supply voltage: 24 V (9 V to 32 V)
- Installation position: Above or next to lane (0.4 m to 5 m)
- Enclosure rating: IP67 (sensor), IP20 (other components)
- Driving speed range: 10 km/h to 200 km/h
- Detection accuracy: Very precise (100% accuracy excluded)
- Inputs/outputs: 6 configurable analog inputs, 6 configurable digital I/Os, 2 additional digital inputs, 2 additional digital outputs
- Ethernet: RJ45, data rate 10 Mbit/s to 1000 Mbit/s
- Wireless LAN: IEEE 802.11 b/g/n, data rate ≤ 65 Mbit/s
- Output data: Time, lane assignment, trajectory, driving direction, speed, validity status, wrong way driver alarm
- Dimensions (H x L x W): 96mm x 97mm x 34mm
- Weight: 1.5 kg
Key Features
- RMS2000 sensor with ±4° aperture angle vertically and ±60° horizontally (adaptable)
- Scanning range from 5 m to 150 m
- High detection accuracy with minimal false positives
- Supports driving speeds from 10 km/h to 200 km/h
- Multiple configurable analog and digital inputs/outputs
- Ethernet RJ45 connection with data rates up to 1000 Mbit/s
- Wireless LAN support with IEEE 802.11 b/g/n protocol
- Wrong way driver alarm via I/Os, TCP/IP, mobile communications, or MQTT
Professional Installation Requirements
- Professional installation by qualified technicians is recommended to ensure proper sensor alignment, secure mounting, and correct system integration.
Applications
- Traffic monitoring and management
- Wrong way driver detection on highways and roads
- Vehicle speed and trajectory analysis
- Telematics data collection for traffic safety
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables improved traffic safety reducing accidents and associated environmental impact
- Supports efficient traffic flow management reducing vehicle emissions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

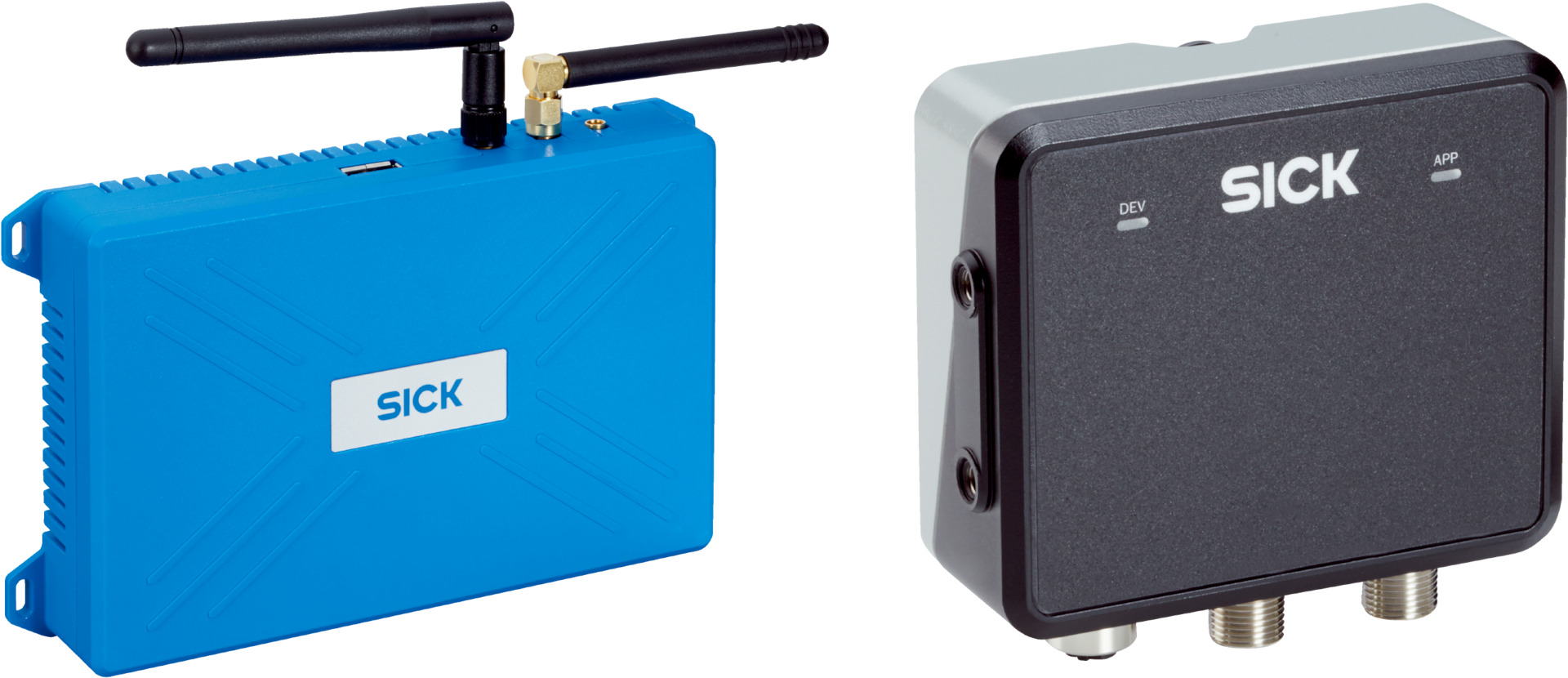

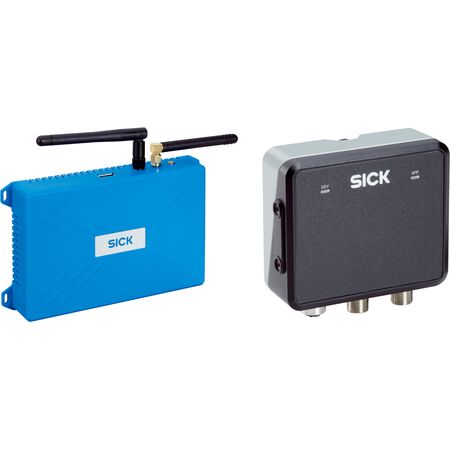

The SICK AOS2001-GC WWD radar sensor system is available for immediate purchase, ideal for traffic safety and wrong way driver detection applications.
